1. To make sure you don’t insert records twice, you need a key from your business application in CRM. That could be a hidden field in CRM, but it allows you to check whether the record already exists in CRM.
2. To update or delete records in CRM you need the guid (the unique key or entity id) from the CRM record.

3. You probably don’t want to update records unnecessarily. This is slow and pollutes the CRM history.

example package

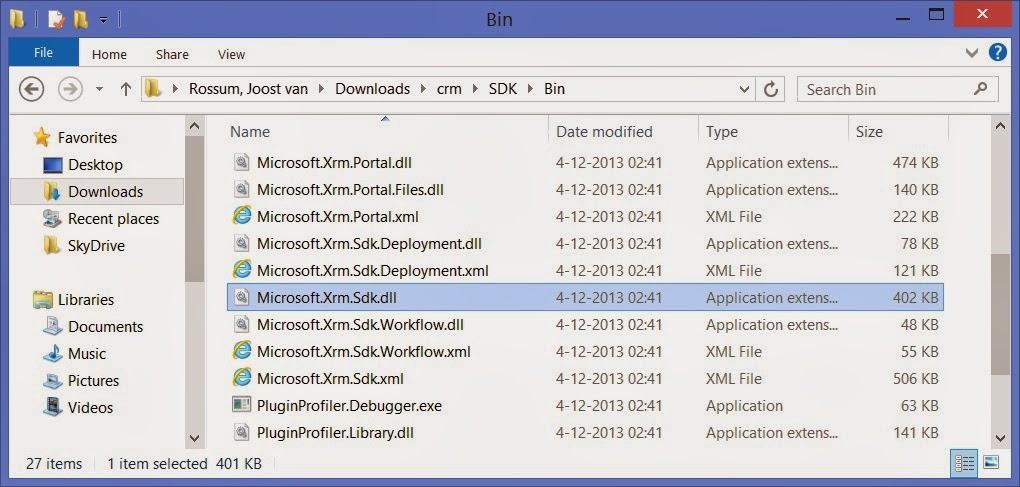

SDK download

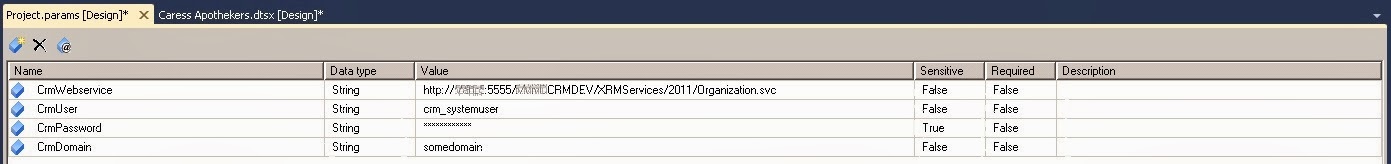

4 parameters, password is marked sensitive.

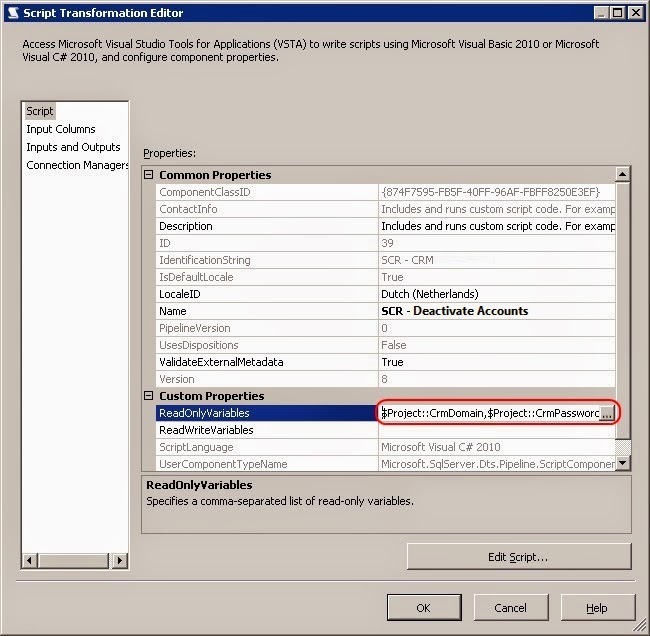

Add parameters as read only variables

Input Columns for insert

• microsoft.xrm.sdk.dll (from the SSIS bin folder mentioned in step 3, use browse)
• System.Runtime.Serialization.dll (from .Net tab)
• System.ServiceModel.dll (from .Net tab)

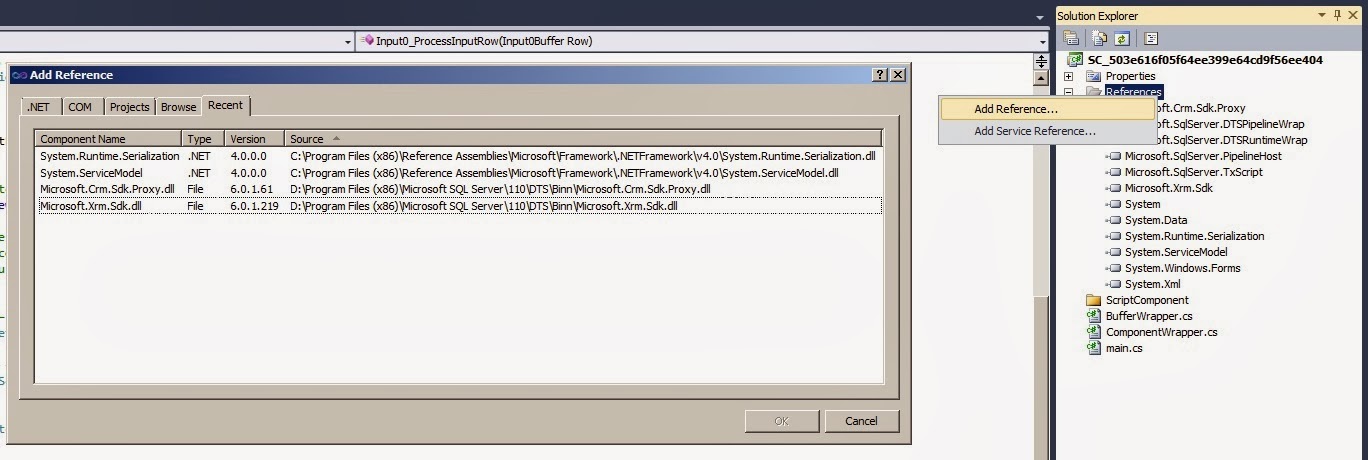

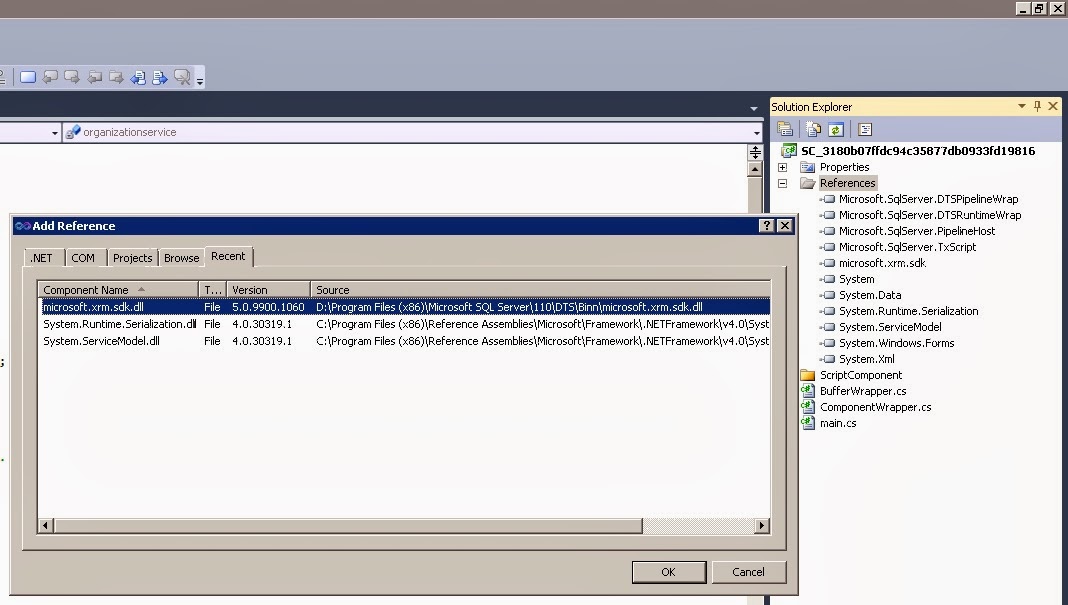

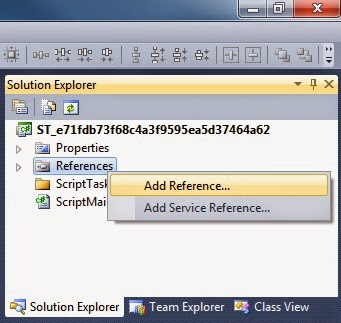

Right click references and choose add reference

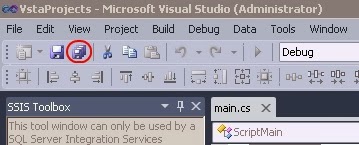

Save All

// C# Code
using System;
using System.Data;
using Microsoft.SqlServer.Dts.Pipeline.Wrapper;
using Microsoft.SqlServer.Dts.Runtime.Wrapper;
using Microsoft.SqlServer.Dts.Runtime;
using Microsoft.Xrm.Sdk;                // Added
using Microsoft.Xrm.Sdk.Client;         // Added
using Microsoft.Xrm.Sdk.Query;          // Added
using System.ServiceModel.Description;  // Added

[Microsoft.SqlServer.Dts.Pipeline.SSISScriptComponentEntryPointAttribute]
public class ScriptMain : UserComponent
{
    // Webservice
    IOrganizationService organizationservice;

    // Variables for the CRM webservice credentials
    // You could also declare them in the PreExecute
    // if you don't use it anywhere else
    string CrmUrl = "";
    string CrmDomainName = "";
    string CrmUserName = "";
    string CrmPassWord = "";

    // This method is called once, before rows begin to be processed in the data flow.
    public override void PreExecute()
    {
        base.PreExecute();

        // Fill variables with values from project parameters
        CrmUrl = this.Variables.CrmWebservice.ToString();
        CrmDomainName = this.Variables.CrmDomain.ToString();
        CrmUserName = this.Variables.CrmUser.ToString();
        CrmPassWord = this.Variables.CrmPassword.ToString();

        // Connect to webservice with credentials
        ClientCredentials credentials = new ClientCredentials();
        credentials.UserName.UserName = string.Format("{0}\\{1}", CrmDomainName, CrmUserName);
        credentials.UserName.Password = CrmPassWord;
        organizationservice = new OrganizationServiceProxy(new Uri(CrmUrl), null, credentials, null);
    }

    // This method is called once for every row that passes through the component from Input0.
    public override void Input0_ProcessInputRow(Input0Buffer Row)
    {
        // Create a Entity object of type 'account'
        Entity newAccount = new Entity("account");

        // Store the business key of the source in CRM
        // This makes it easier to compare and filter records for update
        newAccount["cst_caressid"] = Row.CaressId;

        // fill crm fields. Note fieldnames are case sensitive!
        newAccount["name"] = Row.AccountName;
        newAccount["emailaddress1"] = Row.Email;
        newAccount["telephone1"] = Row.Phone;

        // Address, but check if the columns are filled
        if (!Row.Street_IsNull)
        {
            newAccount["address1_line1"] = Row.Street;
        }

        if (!Row.Housenumber_IsNull)
        {
            newAccount["address1_line2"] = Row.Housenumber;
        }

        if (!Row.Zipcode_IsNull)
        {
            newAccount["address1_postalcode"] = Row.Zipcode;
        }

        if (!Row.Residence_IsNull)
        {
            newAccount["address1_city"] = Row.Residence;
        }

        if (!Row.Country_IsNull)
        {
            newAccount["address1_country"] = Row.Country;
        }

        // Filling a OptionSet (dropdownbox) is a little different
        // You need to know the codes defined in CRM. You need
        // CRM knowledge to find those so ask the CRM consultant.
        OptionSetValue accountType = new OptionSetValue();
        if (!Row.AccountType_IsNull)
        {
            switch (Row.AccountType)
            {
                case "Large":
                    accountType.Value = 1;
                    break;
                case "Medium":
                    accountType.Value = 2;
                    break;
                case "Small":
                    accountType.Value = 3;
                    break;
                default:
                    accountType.Value = 2;
                    break;
            }
            newAccount.Attributes.Add("accounttype", (OptionSetValue)accountType);
        }

        // Create account
        organizationservice.Create(newAccount);
    }
}

// C# Code
using System;
using System.Data;
using Microsoft.SqlServer.Dts.Pipeline.Wrapper;
using Microsoft.SqlServer.Dts.Runtime.Wrapper;
using Microsoft.SqlServer.Dts.Runtime;
using Microsoft.Xrm.Sdk;                // Added
using Microsoft.Xrm.Sdk.Client;         // Added
using Microsoft.Xrm.Sdk.Query;          // Added
using System.ServiceModel.Description;  // Added

[Microsoft.SqlServer.Dts.Pipeline.SSISScriptComponentEntryPointAttribute]
public class ScriptMain : UserComponent
{
    // Webservice
    IOrganizationService organizationservice;

    // Variables for the CRM webservice credentials
    // You could also declare them in the PreExecute
    // if you don't use it anywhere else
    string CrmUrl = "";
    string CrmDomainName = "";
    string CrmUserName = "";
    string CrmPassWord = "";

    // This method is called once, before rows begin to be processed in the data flow.
    public override void PreExecute()
    {
        base.PreExecute();

        // Fill variables with values from project parameters
        CrmUrl = this.Variables.CrmWebservice.ToString();
        CrmDomainName = this.Variables.CrmDomain.ToString();
        CrmUserName = this.Variables.CrmUser.ToString();
        CrmPassWord = this.Variables.CrmPassword.ToString();

        // Connect to webservice with credentials
        ClientCredentials credentials = new ClientCredentials();
        credentials.UserName.UserName = string.Format("{0}\\{1}", CrmDomainName, CrmUserName);
        credentials.UserName.Password = CrmPassWord;
        organizationservice = new OrganizationServiceProxy(new Uri(CrmUrl), null, credentials, null);
    }

    // This method is called once for every row that passes through the component from Input0.
    public override void Input0_ProcessInputRow(Input0Buffer Row)
    {
        // Create a Entity object of type 'account'
        Entity existingAccount = new Entity("account");

        // Most important attribute to fill is the entity id
        // This is a GUID column from CRM. Without this
        // column you can't update records in CRM.
        existingAccount["accountid"] = Row.AccountId;

        // Since we joined on the business key, it shouldn't
        // be updated. That why this line is a comment.
        // existingAccount["cst_caressid"] = Row.CaressId;

        // fill crm fields. Note fieldnames are case sensitive!
        existingAccount["name"] = Row.AccountName;
        existingAccount["emailaddress1"] = Row.Email;
        existingAccount["telephone1"] = Row.Phone;

        // Address, but check if the columns are filled
        if (!Row.Street_IsNull)
        {
            existingAccount["address1_line1"] = Row.Street;
        }

        if (!Row.Housenumber_IsNull)
        {
            existingAccount["address1_line2"] = Row.Housenumber;
        }

        if (!Row.Zipcode_IsNull)
        {
            existingAccount["address1_postalcode"] = Row.Zipcode;
        }

        if (!Row.Residence_IsNull)
        {
            existingAccount["address1_city"] = Row.Residence;
        }

        if (!Row.Country_IsNull)
        {
            existingAccount["address1_country"] = Row.Country;
        }

        // Filling a OptionSet (dropdownbox) is a little different
        // You need to know the codes defined in CRM. You need
        // CRM knowledge to find those so ask the CRM consultant.
        OptionSetValue accountType = new OptionSetValue();
        if (!Row.AccountType_IsNull)
        {
            switch (Row.AccountType)
            {
                case "Large":
                    accountType.Value = 1;
                    break;
                case "Medium":
                    accountType.Value = 2;
                    break;
                case "Small":
                    accountType.Value = 3;
                    break;
                default:
                    accountType.Value = 2;
                    break;
            }
            existingAccount.Attributes.Add("accounttype", (OptionSetValue)accountType);
        }

        // Reference to an other entity
        EntityReference Contact = new EntityReference("contact", Row.ClientGuid);
        existingAccount["contactid"] = Contact;

        // Update account
        organizationservice.Update(existingAccount);
    }
}

// C# Code
using System;
using System;
using System.Data;
using Microsoft.SqlServer.Dts.Pipeline.Wrapper;
using Microsoft.SqlServer.Dts.Runtime.Wrapper;
using Microsoft.SqlServer.Dts.Runtime;
using Microsoft.Xrm.Sdk;                // Added
using Microsoft.Xrm.Sdk.Client;         // Added
using Microsoft.Xrm.Sdk.Query;          // Added
using System.ServiceModel.Description;  // Added

[Microsoft.SqlServer.Dts.Pipeline.SSISScriptComponentEntryPointAttribute]
public class ScriptMain : UserComponent
{
    // Webservice
    IOrganizationService organizationservice;

    // Variables for the CRM webservice credentials
    // You could also declare them in the PreExecute
    // if you don't use it anywhere else
    string CrmUrl = "";
    string CrmDomainName = "";
    string CrmUserName = "";
    string CrmPassWord = "";

    // This method is called once, before rows begin to be processed in the data flow.
    public override void PreExecute()
    {
        base.PreExecute();

        // Fill variables with values from project parameters
        CrmUrl = this.Variables.CrmWebservice.ToString();
        CrmDomainName = this.Variables.CrmDomain.ToString();
        CrmUserName = this.Variables.CrmUser.ToString();
        CrmPassWord = this.Variables.CrmPassword.ToString();

        // Connect to webservice with credentials
        ClientCredentials credentials = new ClientCredentials();
        credentials.UserName.UserName = string.Format("{0}\\{1}", CrmDomainName, CrmUserName);
        credentials.UserName.Password = CrmPassWord;
        organizationservice = new OrganizationServiceProxy(new Uri(CrmUrl), null, credentials, null);
    }

    // This method is called once for every row that passes through the component from Input0.
    public override void Input0_ProcessInputRow(Input0Buffer Row)
    {
        // Warning: this is a physical delete from CRM which can't be undone

        // Delete account. First part in the entityname, second
        // is the entity id from the CRM source.
        organizationservice.Delete("account", Row.AccountId);
    }
}

No export option for Environments

How to get the project identifier

Execute script then copy and execute output

1. There are no checks or validations in this version. So it doesn't check whether objects already exist before calling the SSISDB Stored Procedures.
2. First deploy the SSIS project before executing the stored procedure calls on the next server.
3. Make sure the folder name is equal on the new server or change it in the stored procedure calls.
4. Make sure to check sensitive variables values (you can't get the value from the tables).

exec catalog.deploy_environment 11

USE SSISDB;
GO

-- USE AT OWN RISK! This stored procedure was created on the SSISDB on SQL Server version:
--      Microsoft SQL Server 2012 (SP1) - 11.0.3128.0 (X64)
--      Dec 28 2012 20:23:12
--      Copyright (c) Microsoft Corporation
--      Developer Edition (64-bit) on Windows NT 6.1 <x64> (Build 7601: Service Pack 1)


-- Drop any previous versions of this stored procedure
IF OBJECT_ID ( 'catalog.deploy_environment', 'P' ) IS NOT NULL
    DROP PROCEDURE catalog.deploy_environment;
GO

-- project_id is the identifier in the properties of a project
CREATE PROCEDURE catalog.deploy_environment
    @project_id bigint
AS

 -- Internal variables used within the cursor
 Declare @environment_name as nvarchar(128);
 Declare @project_name as nvarchar(128);
 Declare @folder_name as nvarchar(128);
 Declare @environment_folder_name as nvarchar(128);
 Declare @reference_type as char(1);
 Declare @folder_id as bigint;
 Declare @environment_description as nvarchar(1024);
 Declare @environment_id as bigint;


 DECLARE ref_environment_cursor CURSOR FOR
  -- Loop through all in the project referenced Environments
  SELECT  r.environment_name
  ,   p.name as project_name
  ,   ISNULL(r.environment_folder_name, f.name) as folder_name
  ,   ISNULL(r.environment_folder_name, f.name) as environment_folder_name -- for @reference_type = A
  ,   r.reference_type as reference_type
  ,   f.folder_id
  ,   e.description as environment_description
  ,   e.environment_id
  FROM  [SSISDB].[internal].environment_references as r
  INNER JOIN [SSISDB].[internal].projects as p
     on r.project_id = p.project_id
  INNER JOIN [SSISDB].[internal].folders as f
     on p.folder_id = f.folder_id
  INNER JOIN [SSISDB].[internal].environments as e
     on e.folder_id = f.folder_id
     and e.environment_name = r.environment_name
  WHERE  r.project_id = @project_id

 OPEN ref_environment_cursor

 FETCH NEXT FROM ref_environment_cursor
 INTO @environment_name, @project_name, @folder_name, @environment_folder_name, @reference_type, @folder_id, @environment_description, @environment_id;

 Print '-- Create scripts for deploying enviroments'
 Print '-- Project ID: ' + CAST(@project_id as varchar(5)) + ' - Project name: ' + @project_name
 Print ''

 WHILE @@FETCH_STATUS = 0
 BEGIN
  -- Create environment
  Print '-- Create environment: ' + @environment_name
  Print 'EXEC  [SSISDB].[catalog].[create_environment]'
  Print '   @environment_name=N''' + @environment_name + ''''
  Print ',   @environment_description=N''' + @environment_description + ''''
  Print ',   @folder_name=N''' + @folder_name + ''''
  Print 'GO'
  Print ''

  -- Create reference from environment to project. Relative or Absolute
  Print '-- Reference environment ' + @environment_name + ' to project ' + @project_name
  IF @reference_type = 'R'
  BEGIN
   -- Reference Relative
   Print 'Declare @reference_id bigint'
   Print 'EXEC  [SSISDB].[catalog].[create_environment_reference]'
   Print '   @environment_name=N''' + @environment_name + ''''
   Print ',   @reference_id=@reference_id OUTPUT'
   Print ',   @project_name=N''' + @project_name + ''''
   Print ',   @folder_name=N''' + @folder_name + ''''
   Print ',   @reference_type=R'
   Print 'GO'
   Print ''
  END
  ELSE
  BEGIN
   -- Reference Absolute
   Print 'Declare @reference_id bigint'
   Print 'EXEC  [SSISDB].[catalog].[create_environment_reference]'
   Print '    @environment_name=N''' + @environment_name + ''''
   Print ',   @environment_folder_name=N''' + @environment_folder_name + ''''
   Print ',   @reference_id=@reference_id OUTPUT'
   Print ',   @project_name=N''' + @project_name + ''''
   Print ',   @folder_name=N''' + @folder_name + ''''
   Print ',   @reference_type=A'
   Print 'GO'
   Print ''
  END


  -- Internal variables used within the cursor
  Declare @environment_value as sql_variant--nvarchar(max); -- SQL_VARIANT
  Declare @variable_name as nvarchar(128);
  Declare @sensitive as bit;
  Declare @variable_description as nvarchar(1024);
  Declare @variable_type as nvarchar(128);

  DECLARE environment_var_cursor CURSOR FOR
   -- Loop through all in the variables of the active environment
   SELECT  CAST(ev.value as varchar(255)) as environment_value
   ,   ev.name as variable_name
   ,   ev.sensitive
   ,   ev.description as variable_description
   ,   ev.type as variable_type
   FROM  [SSISDB].[catalog].environment_variables as ev
   WHERE  environment_id = @environment_id

  OPEN environment_var_cursor

  FETCH NEXT FROM environment_var_cursor
  INTO @environment_value, @variable_name, @sensitive, @variable_description, @variable_type;

  WHILE @@FETCH_STATUS = 0
  BEGIN
   -- Environments variables
   Print '-- Create variables for environment: ' + @environment_name + ' - ' + @variable_name

   -- Variable declaration depending on the type within the environment
   IF @variable_type = 'Boolean'
   BEGIN
    Print 'DECLARE @var bit = N''' + ISNULL(CAST(@environment_value as nvarchar(max)),'*S*E*N*S*I*T*I*V*E*') + ''''
   END
   ELSE IF @variable_type = 'Byte'
   BEGIN
    Print 'DECLARE @var tinyint = N''' + ISNULL(CAST(@environment_value as nvarchar(max)),'*S*E*N*S*I*T*I*V*E*') + ''''
   END
   ELSE IF @variable_type = 'DateTime'
   BEGIN
    Print 'DECLARE @var datetime = N''' + ISNULL(CAST(@environment_value as nvarchar(max)),'*S*E*N*S*I*T*I*V*E*') + ''''
   END
   ELSE IF @variable_type = 'Decimal'
   BEGIN
    Print 'DECLARE @var decimal(38,18) = N''' + ISNULL(CAST(@environment_value as nvarchar(max)),'*S*E*N*S*I*T*I*V*E*') + ''''
   END
   ELSE IF @variable_type = 'Double'
   BEGIN
    Print 'DECLARE @var float = N''' + ISNULL(CAST(@environment_value as nvarchar(max)),'*S*E*N*S*I*T*I*V*E*') + ''''
   END
   ELSE IF @variable_type = 'Int16'
   BEGIN
    Print 'DECLARE @var smallint = N''' + ISNULL(CAST(@environment_value as nvarchar(max)),'*S*E*N*S*I*T*I*V*E*') + ''''
   END
   ELSE IF @variable_type = 'Int32'
   BEGIN
    Print 'DECLARE @var int = N''' + ISNULL(CAST(@environment_value as nvarchar(max)),'*S*E*N*S*I*T*I*V*E*') + ''''
   END
   ELSE IF @variable_type = 'Int64'
   BEGIN
    Print 'DECLARE @var bigint = N''' + ISNULL(CAST(@environment_value as nvarchar(max)),'*S*E*N*S*I*T*I*V*E*') + ''''
   END
   ELSE IF @variable_type = 'SByte'
   BEGIN
    Print 'DECLARE @var smallint = N''' + ISNULL(CAST(@environment_value as nvarchar(max)),'*S*E*N*S*I*T*I*V*E*') + ''''
   END
   ELSE IF @variable_type = 'Single'
   BEGIN
    Print 'DECLARE @var float = N''' + ISNULL(CAST(@environment_value as nvarchar(max)),'*S*E*N*S*I*T*I*V*E*') + ''''
   END
   ELSE IF @variable_type = 'String'
   BEGIN
    Print 'DECLARE @var sql_variant = N''' + ISNULL(CAST(@environment_value as nvarchar(max)),'*S*E*N*S*I*T*I*V*E*') + ''''
   END
   ELSE IF @variable_type = 'UInt32'
   BEGIN
    Print 'DECLARE @var bigint = N''' + ISNULL(CAST(@environment_value as nvarchar(max)),'*S*E*N*S*I*T*I*V*E*') + ''''
   END
   ELSE IF @variable_type = 'UInt64'
   BEGIN
    Print 'DECLARE @var bigint = N''' + ISNULL(CAST(@environment_value as nvarchar(max)),'*S*E*N*S*I*T*I*V*E*') + ''''
   END

   Print 'EXEC  [SSISDB].[catalog].[create_environment_variable]'
   Print '   @variable_name=N''' + @variable_name + ''''
   IF @sensitive = 0
   BEGIN
    Print ',   @sensitive=False'
   END
   ELSE
   BEGIN
    Print ',   @sensitive=True'
   END
    Print ',   @description=N''' + @variable_description +  ''''
   Print ',   @environment_name=N''' + @environment_name + ''''
   Print ',   @folder_name=N''' + @folder_name + ''''
   Print ',   @value=@var'
   Print ',   @data_type=N''' + @variable_type + ''''
   Print 'GO'
   Print ''

   FETCH NEXT FROM environment_var_cursor
   INTO @environment_value, @variable_name, @sensitive, @variable_description, @variable_type;
  END
  CLOSE environment_var_cursor;
  DEALLOCATE environment_var_cursor;
  -- End Environments variables

  -- Parameter - Variable mapping
  Declare @object_type as smallint
  Declare @parameter_name as nvarchar(128);
  Declare @object_name as nvarchar(260);
  Declare @folder_name2 as nvarchar(128);
  Declare @project_name2 as nvarchar(128);
  Declare @value_type as char(1)
  Declare @parameter_value as nvarchar(128);

  DECLARE parameter_var_cursor CURSOR FOR
   -- Loop through variables referenced to a parameter
   SELECT  op.object_type
   ,   parameter_name
   ,   [object_name]
   ,   f.name as folder_name
   ,   p.name as project_name
   ,   value_type
   ,   referenced_variable_name as parameter_value
   FROM  [SSISDB].[internal].object_parameters as op
   INNER JOIN [SSISDB].[internal].projects as p
      on p.project_id = op.project_id
   INNER JOIN [SSISDB].[internal].folders as f
      on p.folder_id = f.folder_id
   WHERE  op.project_id = @project_id
   AND   referenced_variable_name is not null

  OPEN parameter_var_cursor

  FETCH NEXT FROM parameter_var_cursor
  INTO @object_type, @parameter_name, @object_name, @folder_name2, @project_name2, @value_type, @parameter_value;

  WHILE @@FETCH_STATUS = 0
  BEGIN
   -- Reference variables
   Print '-- Reference variable ' + @parameter_value + ' to parameter ' + @parameter_name
   Print 'EXEC  [SSISDB].[catalog].[set_object_parameter_value]'
   Print '   @object_type=' + CAST(@object_type as varchar(5))
   Print ',   @parameter_name=N''' + @parameter_name + ''''
   Print ',   @object_name=N''' + @object_name + ''''
   Print ',   @folder_name=N''' + @folder_name2 + '''' ----
   Print ',   @project_name=N''' + @project_name2 +  '''' ---
   Print ',   @value_type=' + @value_type
   Print ',   @parameter_value=N''' + @parameter_value + ''''
   Print 'GO'
   Print ''

   FETCH NEXT FROM parameter_var_cursor
   INTO @object_type, @parameter_name, @object_name, @folder_name2, @project_name2, @value_type, @parameter_value;
  END
  CLOSE parameter_var_cursor;
  DEALLOCATE parameter_var_cursor;
  -- End Parameter - Variable mapping

  FETCH NEXT FROM ref_environment_cursor
  INTO @environment_name, @project_name, @folder_name, @environment_folder_name, @reference_type, @folder_id, @environment_description, @environment_id;
 END
 CLOSE ref_environment_cursor;
 DEALLOCATE ref_environment_cursor;
GO

Get everything when a solution or project is opened.

Get latest version of item on check out.

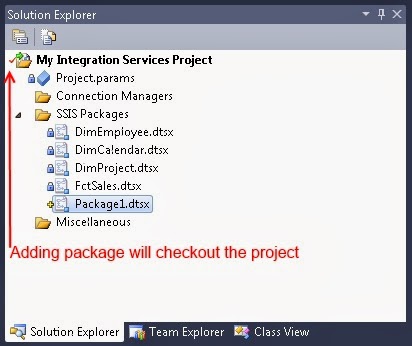

Adding new package will check out the project

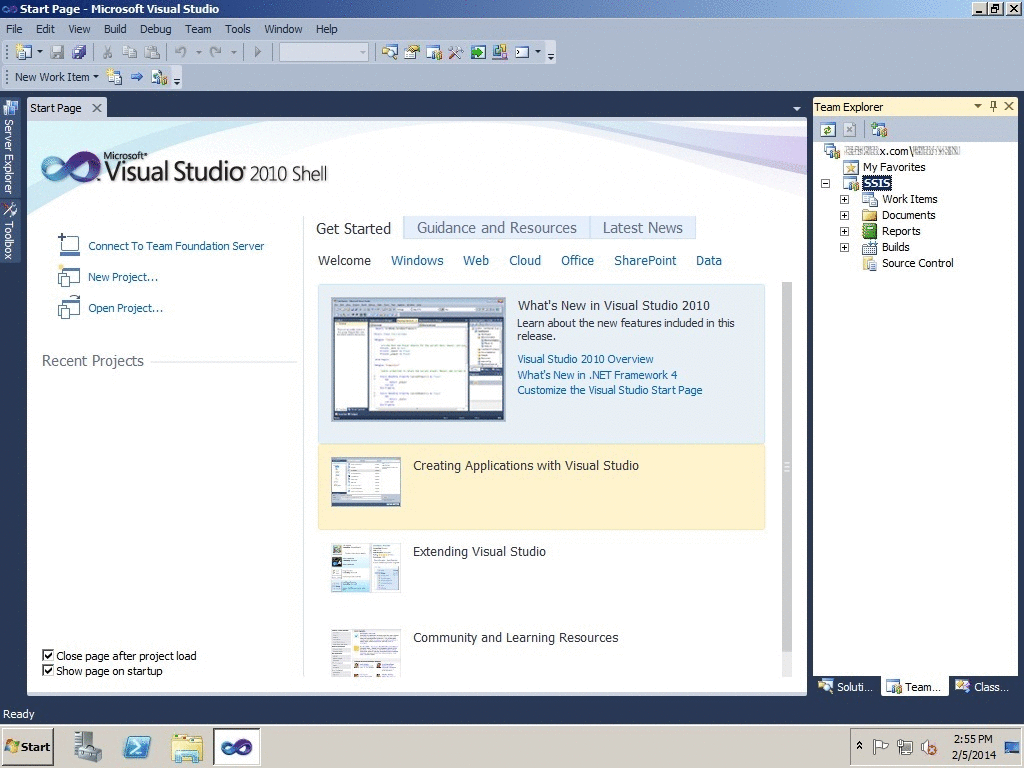

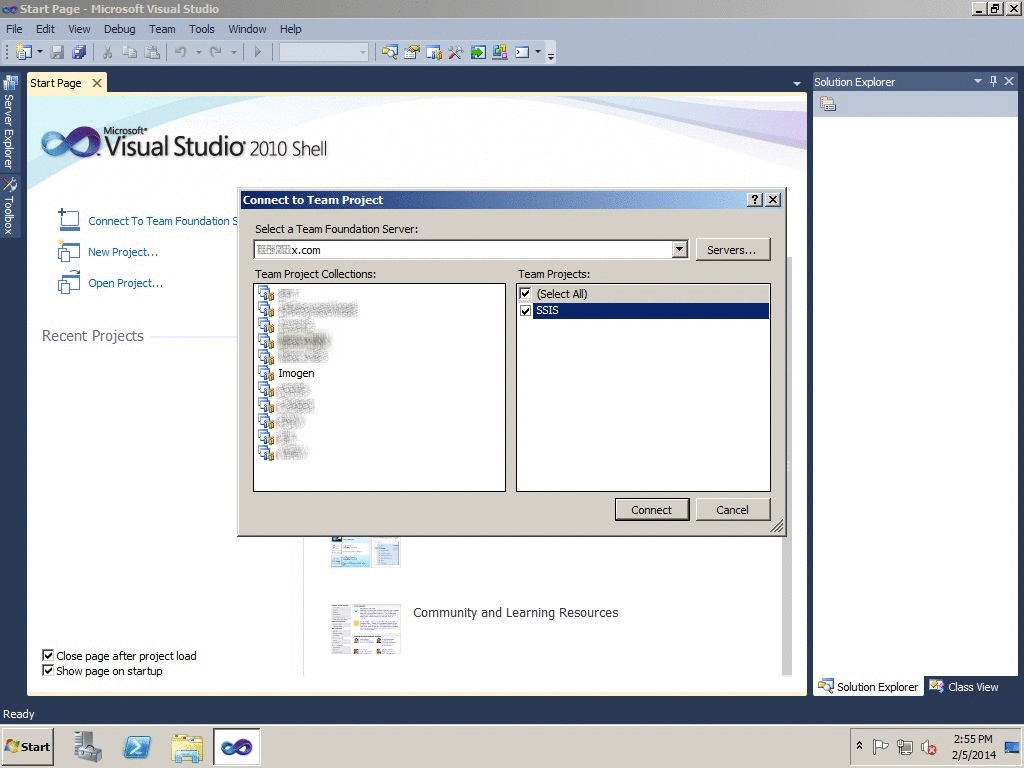

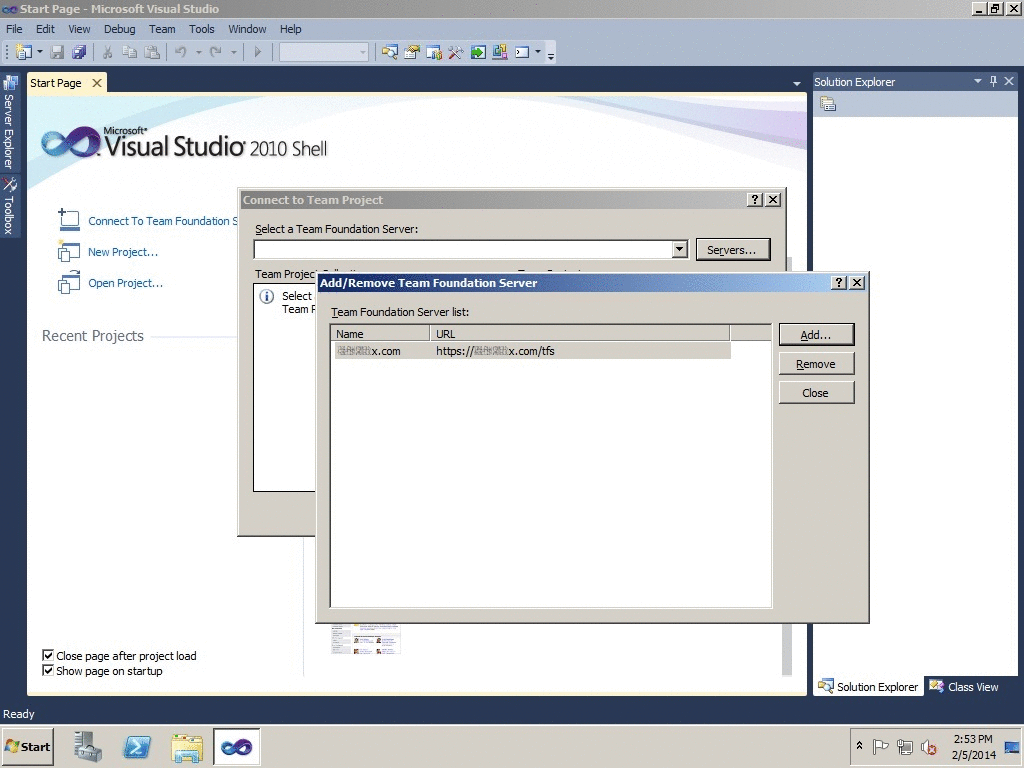

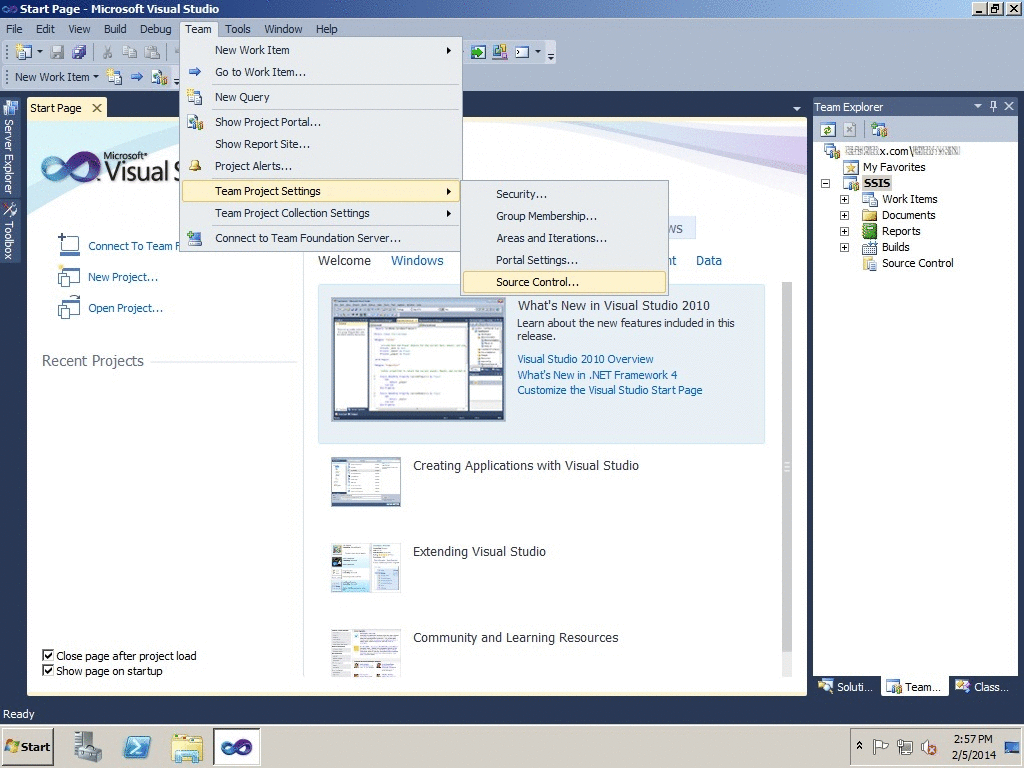

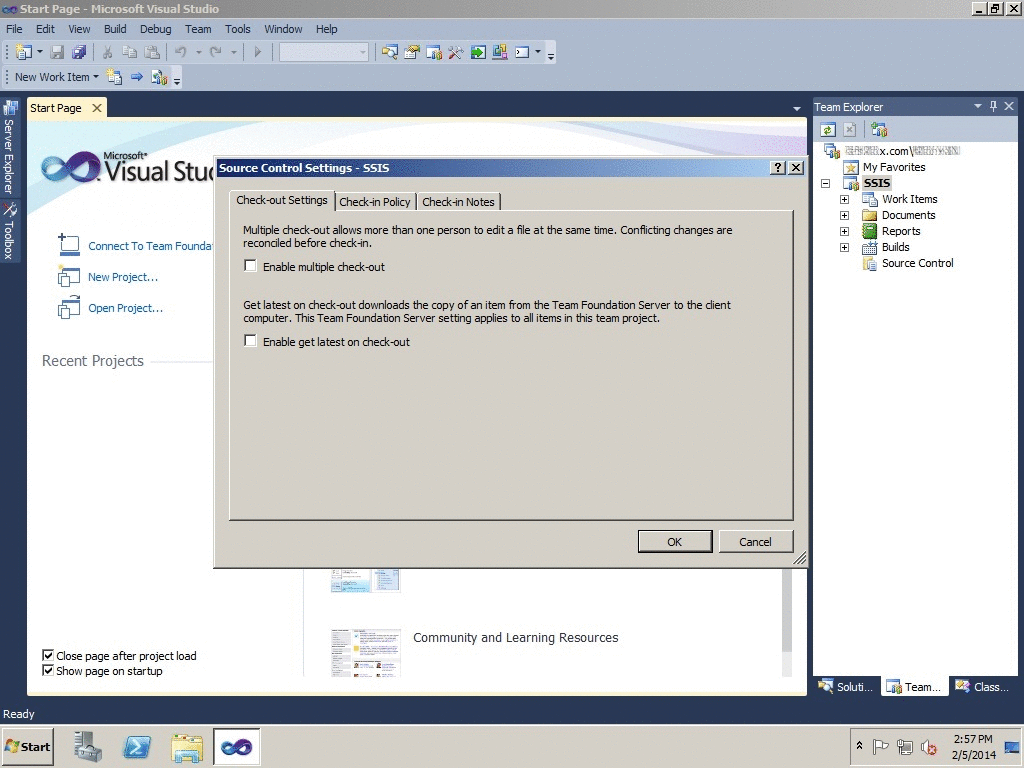

In Team-menu click Team Project Settings, Source Control

Uncheck the multiple checkout box

Don't check in faulty packages

Check in comments

• SSIS & TFS general:
  http://msdn.microsoft.com/en-us/library/dn463982.aspx
• Branching:
  http://www.mattmasson.com/2012/02/thoughts-on-branching-strategies-for-ssis-projects/
• SSIS team development:
  http://consultingblogs.emc.com/jamiethomson/archive/2007/08/06/SSIS_3A00_-Team-Development-Experiences.aspx
• SSIS release and Source Control:
  http://phil-austin.blogspot.com/2012/11/ssis-release-and-source-control.html
• Building packages on TFS:
  https://blogs.blackmarble.co.uk/blogs/rfennell/post/2013/04/24/Getting-SQL-2012-SSIS-packages-built-on-TFS-20122.aspx

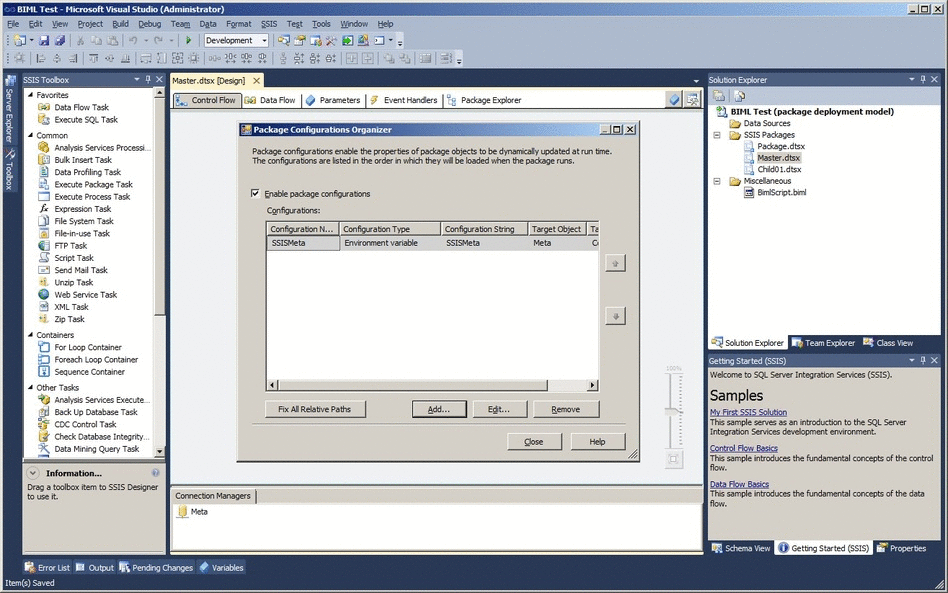

Environment Variable Config

<Biml xmlns="http://schemas.varigence.com/biml.xsd">

<Connections>
<!-- My Connection Manager to the Meta database containing a config table and other tables-->
<OleDbConnection
   Name="Meta"
   ConnectionString="Data Source=.;Initial Catalog=Meta;Provider=SQLNCLI11.1;Integrated Security=SSPI;Auto Translate=False;">
</OleDbConnection>
</Connections>

<Packages>
<Package Name="Child01" ConstraintMode="Linear">

<PackageConfigurations>
<!-- Environment Variable Configuration -->
<!-- The Environment Variable should already contain a value -->

<!-- The name of the configuration shown in the Package Configurations Organizer window -->
<PackageConfiguration Name="SSISMeta">
<!-- The name of the environment variable -->
<EnvironmentVariableInput EnvironmentVariable="SSISMeta" />
<ConfigurationValues>
<!-- PropertyPath contains the name of the connection manager -->
<!-- You can leave the value property empty -->
<ConfigurationValue
       DataType="String"
       Name="ConnectrionStringMeta"
       PropertyPath="\Package.Connections[Meta].Properties[ConnectionString]"
       Value="" />
</ConfigurationValues>
</PackageConfiguration>

</PackageConfigurations>

<Tasks>
<!-- Dummy Task with connection to make sure the connection manager is added to the package -->
<ExecuteSQL
     Name="SQL - Dummy"
     ConnectionName="Meta"
     ResultSet="None">
<DirectInput>
      SELECT @@VERSION AS 'SQL Server Version'
</DirectInput>
</ExecuteSQL>

</Tasks>
</Package>
</Packages>
</Biml>

SQL Server Config

<Biml xmlns="http://schemas.varigence.com/biml.xsd">

<Connections>
<!-- My Connection Manager to the Meta database containing a config table and other tables-->
<OleDbConnection
   Name="Meta"
   ConnectionString="Data Source=.;Initial Catalog=Meta;Provider=SQLNCLI11.1;Integrated Security=SSPI;Auto Translate=False;">
</OleDbConnection>
<!-- My Connection Manager to a source database -->
<OleDbConnection
   Name="Source"
   ConnectionString="Data Source=.;Initial Catalog=AdventureWorks2012;Provider=SQLNCLI11.1;Integrated Security=SSPI;Auto Translate=False;">
</OleDbConnection>
</Connections>

<Packages>
<Package Name="Child01" ConstraintMode="Linear">

<PackageConfigurations>
<!-- Environment Variable Configuration -->
<!-- The Environment Variable should already contain a value -->

<!-- The name of the configuration shown in the Package Configurations Organizer window -->
<PackageConfiguration Name="SSISMeta">
<!-- The name of the environment variable -->
<EnvironmentVariableInput EnvironmentVariable="SSISMeta" />
<ConfigurationValues>
<!-- PropertyPath contains the name of the connection manager -->
<!-- You can leave the value property empty -->
<ConfigurationValue
       DataType="String"
       Name="ConnectrionStringMeta"
       PropertyPath="\Package.Connections[Meta].Properties[ConnectionString]"
       Value="" />
</ConfigurationValues>
</PackageConfiguration>

<!-- SQL Server Configuration -->
<!-- The configuration table should already contain values -->

<!-- ConnectionName is the name of the connection manager containing the configuration table -->
<!-- Name is for both the Configuration Filter in the database table and the name in the Package Configurations Organizer window -->
<PackageConfiguration
     ConnectionName="Meta"
     Name="SourceConfiguration">
<!-- Table contains the name of the configuration table -->
<ExternalTableInput Table="[dbo].[SSIS Configurations]" />
</PackageConfiguration>

</PackageConfigurations>

<Tasks>
<!-- Dummy Tasks with connection to make sure the connection manager is added to the package -->
<ExecuteSQL
     Name="SQL - Dummy 1"
     ConnectionName="Meta"
     ResultSet="None">
<DirectInput>
      SELECT @@VERSION AS 'SQL Server Version'
</DirectInput>
</ExecuteSQL>
<ExecuteSQL
     Name="SQL - Dummy 2"
     ConnectionName="Source"
     ResultSet="None">
<DirectInput>
      SELECT @@VERSION AS 'SQL Server Version'
</DirectInput>
</ExecuteSQL>
</Tasks>
</Package>
</Packages>
</Biml>

Parent Package Variable Config

<Biml xmlns="http://schemas.varigence.com/biml.xsd">
<Packages>
<Package Name="Child01" ConstraintMode="Linear">

<!-- Parent Package Variable Configuration -->
<!-- Note: this is not in the Configurations tag, but in the variable tag -->

<!-- InheritFromPackageParentConfigurationString is for both the name of the parent package variable -->
<!-- and the name in the Package Configurations Organizer window-->
<Variables>
<Variable
     DataType="String"
     Name="MyChildPackageVariable"
     InheritFromPackageParentConfigurationString="MyParentPackageVariable"
     Namespace="User">SSISJoost</Variable>
</Variables>

</Package>
</Packages>
</Biml>

XML Configuration File

<Biml xmlns="http://schemas.varigence.com/biml.xsd">
<Connections>
<OleDbConnection
   Name="Destination"
   ConnectionString="Data Source=.;Initial Catalog=Staging;Provider=SQLNCLI11.1;Integrated Security=SSPI;Auto Translate=False;">
</OleDbConnection>
</Connections>
<Packages>
<Package Name="Child01" ConstraintMode="Linear">

<PackageConfigurations>
<!-- XML Configuration File -->

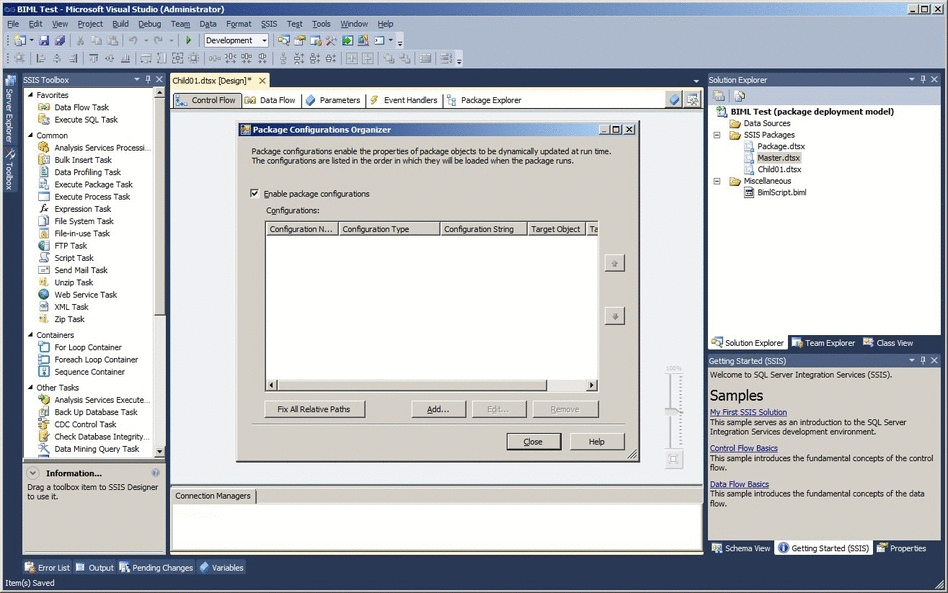

<!-- The name is for the name in the Package Configurations Organizer window-->
<PackageConfiguration Name="Destination Configuration">
<!-- ExternalFilePath is the path of the config file  -->
<ExternalFileInput
      ExternalFilePath="D:\DestinationConfigurations.dtsConfig">
</ExternalFileInput>
<ConfigurationValues>
<!-- You can leave the value property empty -->
<!-- The value of the PropertyPath should also be in the DtsConfig file -->
<ConfigurationValue
       DataType="String"
       Name="ConnectionStringDestination"
       PropertyPath="\Package.Connections[Destination].Properties[ConnectionString]"
       Value=""
>
</ConfigurationValue>
</ConfigurationValues>
</PackageConfiguration>

</PackageConfigurations>

<Tasks>
<!-- Dummy Tasks with connection to make sure the connection manager is added to the package -->
<ExecuteSQL
     Name="SQL - Dummy"
     ConnectionName="Destination"
     ResultSet="None">
<DirectInput>
      SELECT @@VERSION AS 'SQL Server Version'
</DirectInput>
</ExecuteSQL>
</Tasks>
</Package>
</Packages>
</Biml>

Data Flow Example with Import Columns

SDK download

4 parameters, password is marked sensitive.

Add parameters as read only variables

Input Columns for insert

• microsoft.xrm.sdk.dll (from the SSIS bin folder mentioned in step 3, use browse)
• System.Runtime.Serialization.dll (from .Net tab)
• System.ServiceModel.dll (from .Net tab)

Right click references and choose add reference

Save All

// C# Code
using System;
using System.Data;
using Microsoft.SqlServer.Dts.Pipeline.Wrapper;
using Microsoft.SqlServer.Dts.Runtime.Wrapper;
using Microsoft.SqlServer.Dts.Runtime;
using Microsoft.Xrm.Sdk;                // Added
using Microsoft.Xrm.Sdk.Client;         // Added
using Microsoft.Xrm.Sdk.Query;          // Added
using System.ServiceModel.Description;  // Added

[Microsoft.SqlServer.Dts.Pipeline.SSISScriptComponentEntryPointAttribute]
public class ScriptMain : UserComponent
{
    // Webservice
    IOrganizationService organizationservice;

    // Variables for the CRM webservice credentials
    // You could also declare them in the PreExecute
    // if you don't use it anywhere else
    string CrmUrl = "";
    string CrmDomainName = "";
    string CrmUserName = "";
    string CrmPassWord = "";

    // This method is called once, before rows begin to be processed in the data flow.
    public override void PreExecute()
    {
        base.PreExecute();

        // Fill variables with values from project parameters
        CrmUrl = this.Variables.CrmWebservice.ToString();
        CrmDomainName = this.Variables.CrmDomain.ToString();
        CrmUserName = this.Variables.CrmUser.ToString();
        CrmPassWord = this.Variables.CrmPassword.ToString();

        ClientCredentials credentials = new ClientCredentials();
        credentials.UserName.UserName = string.Format("{0}\\{1}", CrmDomainName, CrmUserName);
        credentials.UserName.Password = CrmPassWord;
        organizationservice = new OrganizationServiceProxy(new Uri(CrmUrl), null, credentials, null);
    }

    // This method is called once for every row that passes through the component from Input0.
    public override void Input0_ProcessInputRow(Input0Buffer Row)
    {
        // Create new annotation object to store the properties
        Entity newAnnotation = new Entity("annotation");

        // Create an optionset to indicate to which entity this annotation will be linked
        OptionSetValue objectidtypecode = new OptionSetValue();
        objectidtypecode.Value = 2; // 2 is the enitity Contact in this case. Look it up in CRM.
        newAnnotation.Attributes.Add("objectidtypecode", (OptionSetValue)objectidtypecode);

        // Create an entity reference to contact and store it in the column ObjectId
        EntityReference Contact = new EntityReference("contact", Row.ContactId);
        newAnnotation["objectid"] = Contact;

        // Filename of the attachment (without path)
        newAnnotation["filename"] = Row.Filename;

        // The actual file is retrieved from the blob column as byte[]
        // And that byte[] is converted to a Base64String:
        newAnnotation["documentbody"] = Convert.ToBase64String(Row.Document.GetBlobData(0, Convert.ToInt32(Row.Document.Length)));

        // A subject with some title
        newAnnotation["subject"] = Row.Subject;

        // Add the annotation
        organizationservice.Create(newAnnotation);
    }
}

SDK download

4 parameters, password is marked sensitive.

Add parameters as read only variables

Input Columns for deativate

• microsoft.xrm.sdk.dll (from the SSIS bin folder mentioned in step 3, use browse)
• microsoft.crm.sdk.proxy.dll (from the SSIS bin folder mentioned in step 3, use browse)
• System.Runtime.Serialization.dll (from .Net tab)
• System.ServiceModel.dll (from .Net tab)

Right click references and choose add reference

Save All

// C# Code
using System;
using System.Data;
using Microsoft.SqlServer.Dts.Pipeline.Wrapper;
using Microsoft.SqlServer.Dts.Runtime.Wrapper;
using Microsoft.Xrm.Sdk;                // Added
using Microsoft.Xrm.Sdk.Client;         // Added
using Microsoft.Crm.Sdk.Messages;       // Added
using System.ServiceModel.Description;  // Added

[Microsoft.SqlServer.Dts.Pipeline.SSISScriptComponentEntryPointAttribute]
public class ScriptMain : UserComponent
{
    // Webservice
    IOrganizationService organizationservice;

    // Variables for the CRM webservice credentials
    // You could also declare them in the PreExecute
    // if you don't use it anywhere else
    string CrmUrl = "";
    string CrmDomainName = "";
    string CrmUserName = "";
    string CrmPassWord = "";

    // This method is called once, before rows begin to be processed in the data flow.
    public override void PreExecute()
    {
        base.PreExecute();
        // Fill variables with values from project parameters
        CrmUrl = this.Variables.CrmWebservice.ToString();
        CrmDomainName = this.Variables.CrmDomain.ToString();
        CrmUserName = this.Variables.CrmUser.ToString();
        CrmPassWord = this.Variables.CrmPassword.ToString();

        // Connect to webservice with credentials
        ClientCredentials credentials = new ClientCredentials();
        credentials.UserName.UserName = string.Format("{0}\\{1}", CrmDomainName, CrmUserName);
        credentials.UserName.Password = CrmPassWord;
        organizationservice = new OrganizationServiceProxy(new Uri(CrmUrl), null, credentials, null);
      }

    // This method is called once for every row that passes through the component from Input0.
    public override void Input0_ProcessInputRow(Input0Buffer Row)
    {
        // Create CRM request to (de)activate record
        SetStateRequest setStateRequest = new SetStateRequest();

        // Which entity/record should be (de)activate?
        // First part in the entityname, second
        // is the entity id from the CRM source.
        setStateRequest.EntityMoniker = new EntityReference("account", Row.myGuid);

        // Setting 'State' (0 – Active ; 1 – InActive)
        setStateRequest.State = new OptionSetValue(1);

        // Setting 'Status' (1 – Active ; 2 – InActive)
        setStateRequest.Status = new OptionSetValue(2);

        // Execute the request
        SetStateResponse response = (SetStateResponse)organizationservice.Execute(setStateRequest);
    }
}

// C# Code
// This method is called once for every row that passes through the component from Input0.
public override void Input0_ProcessInputRow(Input0Buffer Row)
{
    // Create a Entity object of type 'account'
    Entity newAccount = new Entity("account");

    // fill crm fields. Note fieldnames are case sensitive!
    newAccount["name"] = Row.AccountName;
    newAccount["emailaddress1"] = Row.Email;
    newAccount["telephone1"] = Row.Phone;

    // Create account and store its Entity ID to deactivate the account
    Guid AccountGuid = organizationservice.Create(newAccount);

    // Create CRM request to (de)activate record
    SetStateRequest setStateRequest = new SetStateRequest();

    // Which entity/record should be (de)activate?
    // First part in the entityname, second
    // is the entity id you got from adding
    // the new account.
    setStateRequest.EntityMoniker = new EntityReference("account", AccountGuid);

    // Setting 'State' (0 – Active ; 1 – InActive)
    setStateRequest.State = new OptionSetValue(1);

    // Setting 'Status' (1 – Active ; 2 – InActive)
    setStateRequest.Status = new OptionSetValue(2);

    // Execute the request
    SetStateResponse response = (SetStateResponse)organizationservice.Execute(setStateRequest);
}

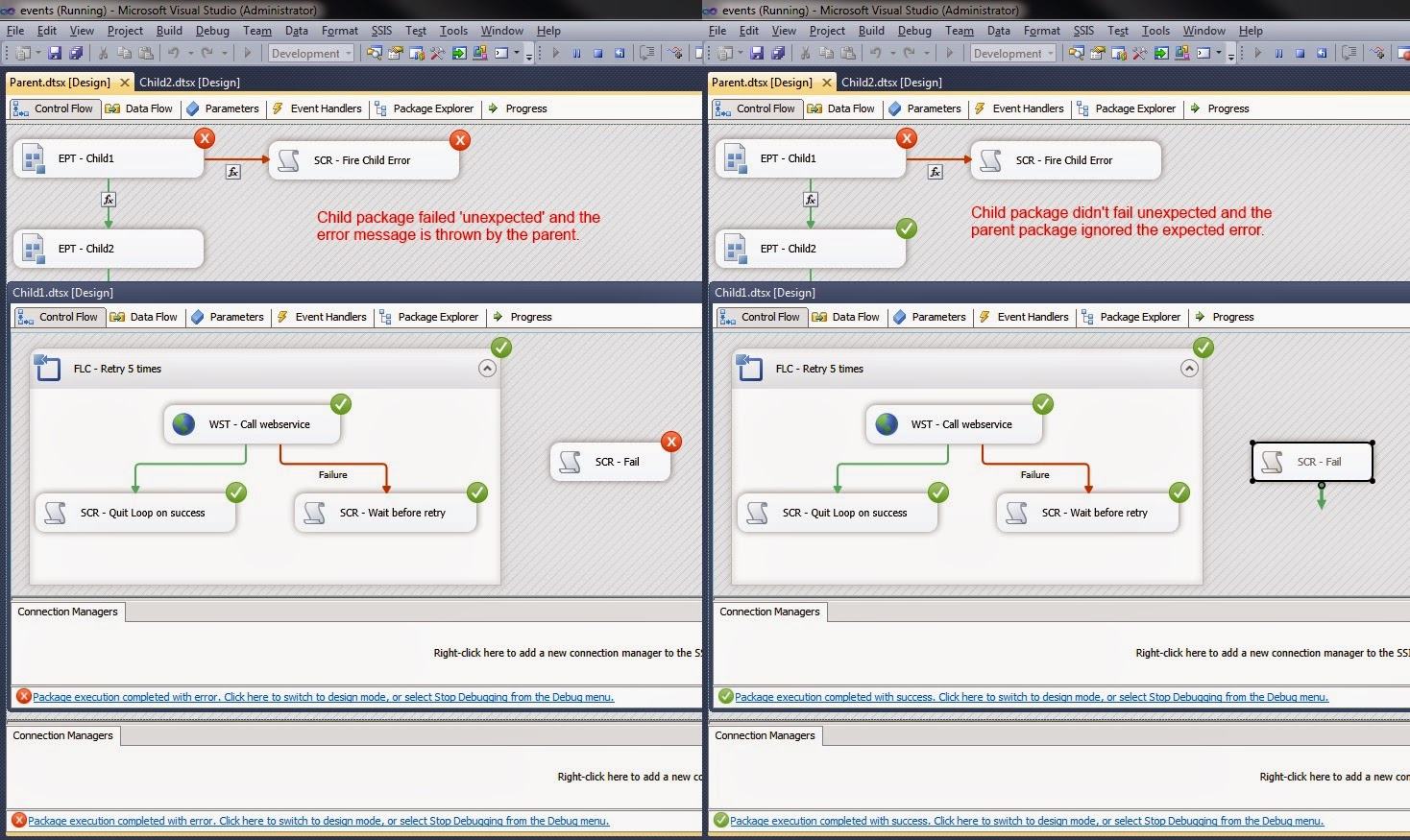

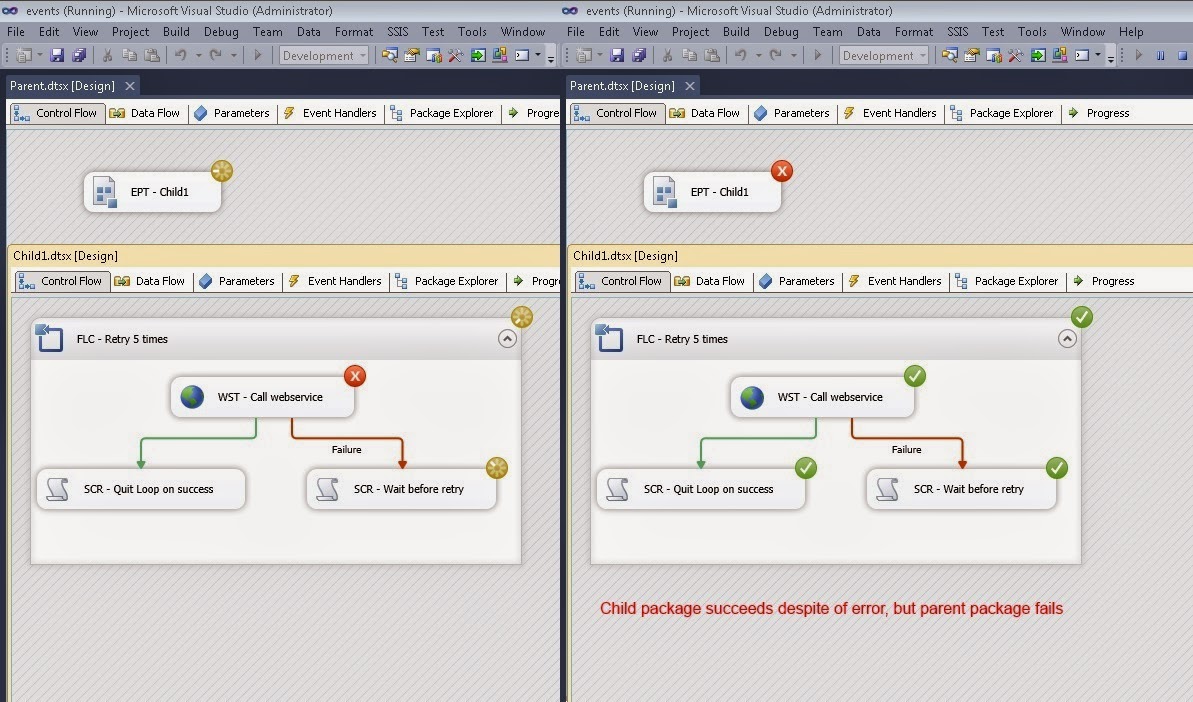

Child succeeds, parent fails

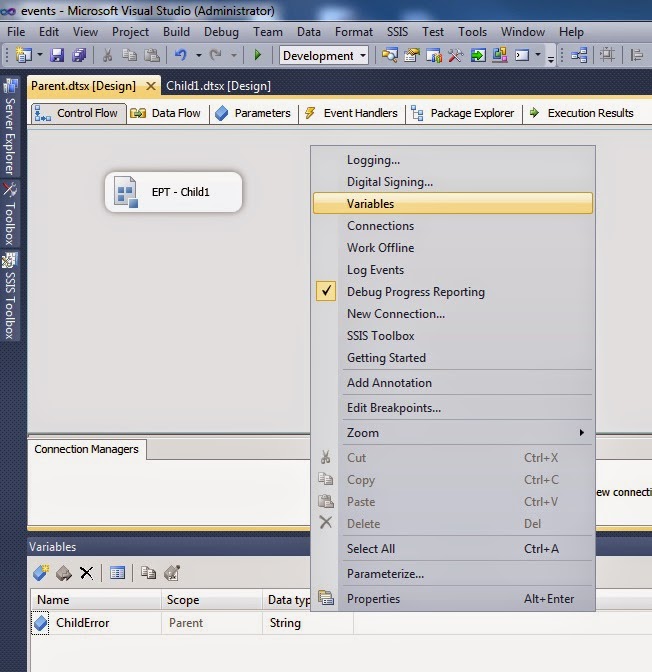

Add string variable

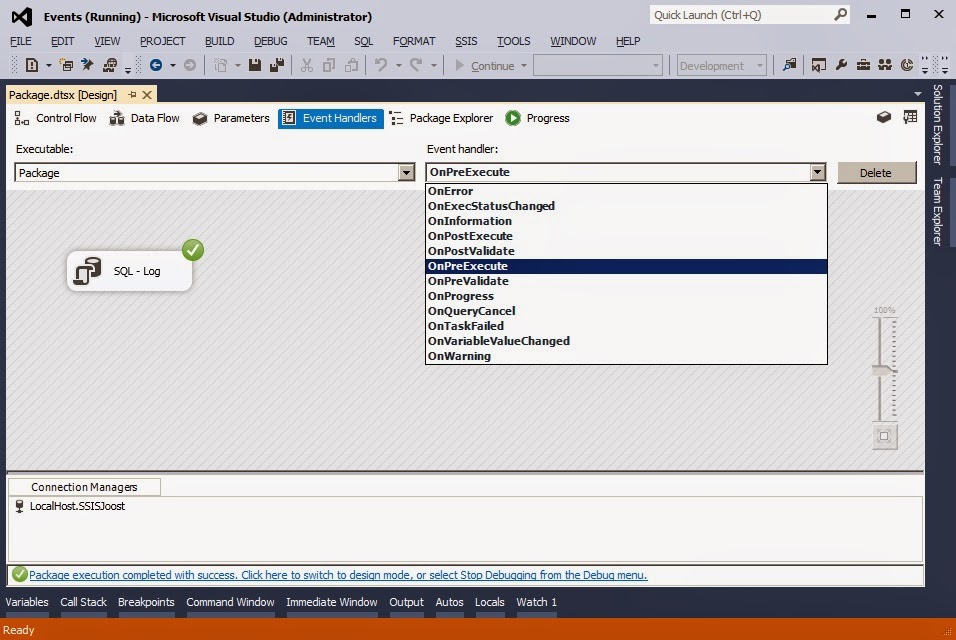

OnError event handler for package

Add the variables

// C# Code
using System;
using System.Data;
using Microsoft.SqlServer.Dts.Runtime;
using System.Windows.Forms;

namespace ST_ace2311e5a4c4bbb98101cd54888c7c9
{
    [Microsoft.SqlServer.Dts.Tasks.ScriptTask.SSISScriptTaskEntryPointAttribute]
    public partial class ScriptMain : Microsoft.SqlServer.Dts.Tasks.ScriptTask.VSTARTScriptObjectModelBase
    {
        public void Main()
        {
            // Fill parent package variables with error message from this child package.
            Dts.Variables["User::ChildError"].Value = Dts.Variables["System::ErrorCode"].Value.ToString() + " - " + Dts.Variables["System::ErrorDescription"].Value.ToString();
            Dts.TaskResult = (int)ScriptResults.Success;
        }

        #region ScriptResults declaration
        ///

        /// This enum provides a convenient shorthand within the scope of this class for setting the
        /// result of the script.
        ///
        /// This code was generated automatically.
        ///

        enum ScriptResults
        {
            Success = Microsoft.SqlServer.Dts.Runtime.DTSExecResult.Success,
            Failure = Microsoft.SqlServer.Dts.Runtime.DTSExecResult.Failure
        };
        #endregion

 }
}

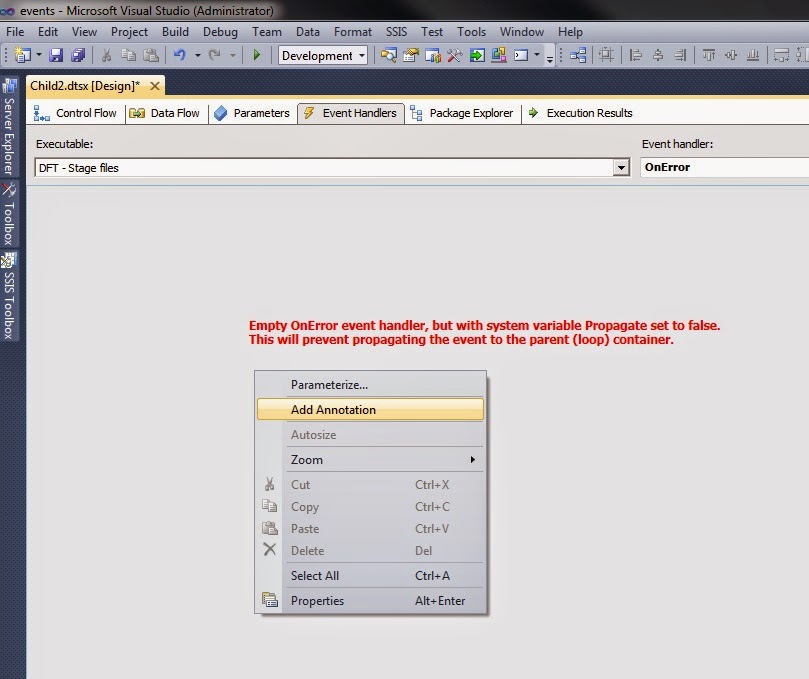

OnError Event Handler

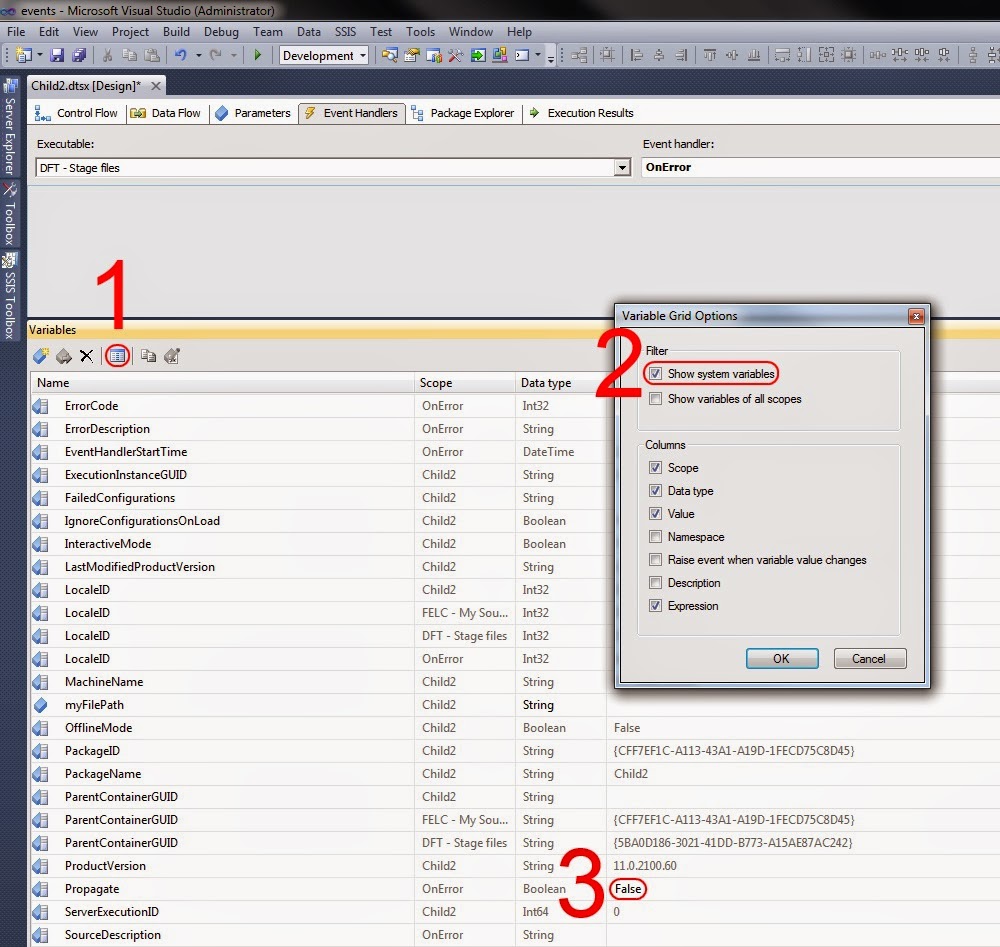

Show system variables for SSIS 2008

Fire Child Error

Read-only variable

// C# Code
using System;
using System.Data;
using Microsoft.SqlServer.Dts.Runtime;
using System.Windows.Forms;

namespace ST_7b522ca79c9f4428a233a100bfc66e6e
{
    [Microsoft.SqlServer.Dts.Tasks.ScriptTask.SSISScriptTaskEntryPointAttribute]
    public partial class ScriptMain : Microsoft.SqlServer.Dts.Tasks.ScriptTask.VSTARTScriptObjectModelBase
    {
        public void Main()
        {
            // Fire error with error message from child package and fail script task
            Dts.Events.FireError(0, "Child package", "Child package error: " + Dts.Variables["User::ChildError"].Value.ToString(), string.Empty, 0);
            Dts.TaskResult = (int)ScriptResults.Failure;
        }

        #region ScriptResults declaration
        ///

        /// This enum provides a convenient shorthand within the scope of this class for setting the
        /// result of the script.
        ///
        /// This code was generated automatically.
        ///

        enum ScriptResults
        {
            Success = Microsoft.SqlServer.Dts.Runtime.DTSExecResult.Success,
            Failure = Microsoft.SqlServer.Dts.Runtime.DTSExecResult.Failure
        };
        #endregion

 }
}

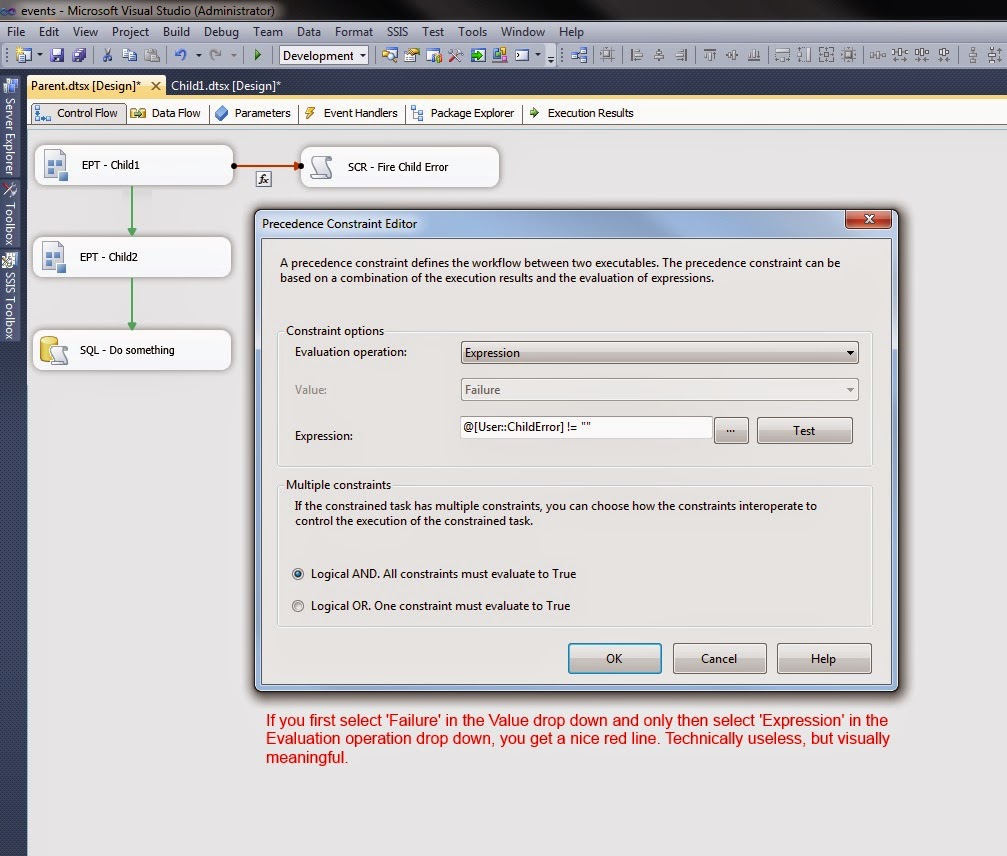

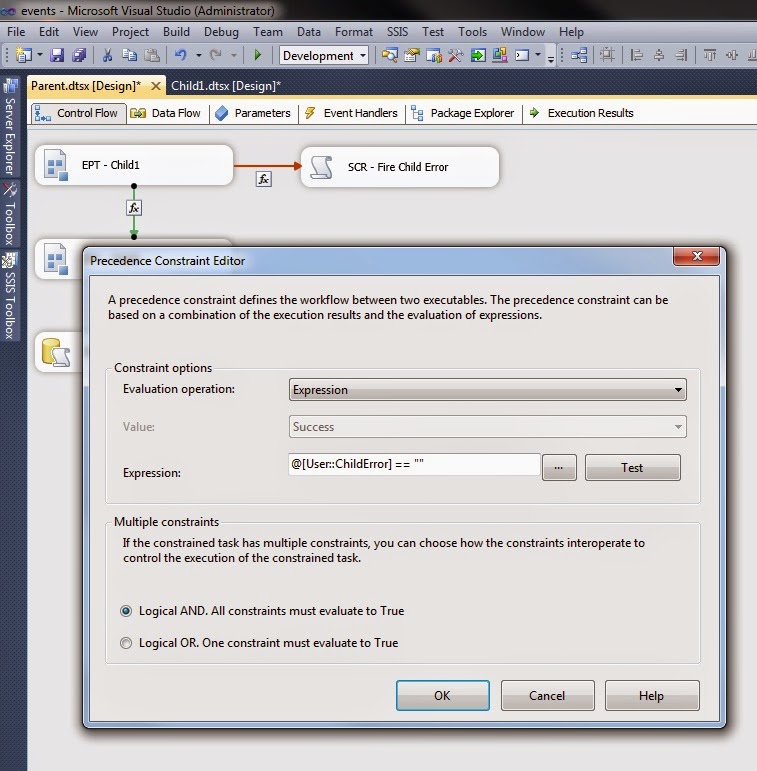

Continue if there are no unexpected errors in the child package

The result

-- Drop dimension table if exists
IF EXISTS (SELECT * FROM sys.objects WHERE object_id = OBJECT_ID(N'[dbo].[dim_age]') AND TYPE IN (N'U'))
BEGIN
 DROP TABLE [dbo].[dim_age]
END

-- Create table dim_age
SET ANSI_NULLS ON
GO

SET QUOTED_IDENTIFIER ON
GO

CREATE TABLE [dbo].[dim_age](
 [dim_age_id] [int] IDENTITY(-1,1) NOT NULL,
 [Age] [smallint] NULL,
 [AgeGroup1] [nvarchar](50) NULL,
 [AgeGroup2] [nvarchar](50) NULL,
 CONSTRAINT [PK_dim_age] PRIMARY KEY CLUSTERED
(
 [dim_age_id] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
) ON [PRIMARY]

GO

-- Enter unknown dimension value (in case a person's date of birth is unknown)
INSERT INTO [dbo].[dim_age]
           ([Age]
           ,[AgeGroup1]
           ,[AgeGroup2])
     VALUES
           (-1
           ,'Unknown'
           ,'Unknown')
GO

-- Enter all ages
declare @age smallint;
set @age = 0;

-- Loop through ages 0 to 130
WHILE @age < 131
BEGIN
 INSERT INTO [dbo].[dim_age]
      ([Age]
      ,[AgeGroup1]
      ,[AgeGroup2])
   VALUES
      (@age
      -- Use the common age groups/categories of your region/branch/industry
      -- This is just an example
    ,CASE
     WHEN @age < 15 THEN '0 till 15 year'
     WHEN @age < 25 THEN '15 till 25 year'
     WHEN @age < 35 THEN '25 till 35 year'
     WHEN @age < 45 THEN '35 till 45 year'
     WHEN @age < 55 THEN '45 till 55 year'
     WHEN @age < 65 THEN '55 till 65 year'
     ELSE '65 year and older'
    END
       ,CASE
     WHEN @age < 19 THEN 'Juvenile'
     ELSE 'Mature'
    END
    )

 -- Goto next age
 set @age = @age + 1
END

The result: filled age dimension

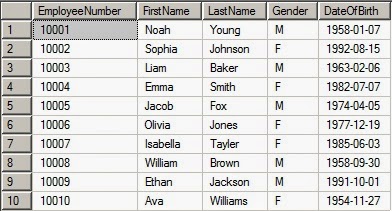

Employee table

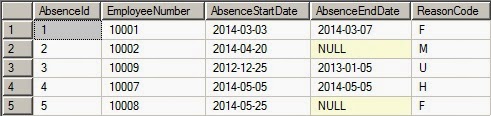

Absence table

-- Split absence time periode in separate days, but go back 2 years max and 1 year forward if end date is unknown
SELECT  Absence.AbsenceId
,   Absence.EmployeeNumber
--   Date of absence
,   dim_date.Date as AbsenceDate
,   Absence.ReasonCode
--   Calculation of age at time of absence
,   DATEDIFF(YEAR, Employee.DateOfBirth, dim_date.Date)
   -
   (CASE
    WHEN DATEADD(YY, DATEDIFF(YEAR, Employee.DateOfBirth, dim_date.Date), Employee.DateOfBirth)
>  dim_date.Date THEN 1
    ELSE 0
   END) as Age
FROM  EmployeeApplication.dbo.Absence
INNER JOIN EmployeeApplication.dbo.Employee
   on Absence.EmployeeNumber = Employee.EmployeeNumber
INNER JOIN  DM_Staff.dbo.dim_date
   on dim_date.Date
   -- change start date to lower bound if it's below it
            BETWEEN CASE WHEN YEAR(Absence.AbsenceStartDate) >= YEAR(GETDATE()) - 2 THEN Absence.AbsenceStartDate
            ELSE DATEADD(yy, DATEDIFF(yy, 0, getdate()) - 2, 0) END
   -- change end date to upper bound if it's null
            AND ISNULL(Absence.AbsenceEndDate, DATEADD(yy, DATEDIFF(yy, 0, getdate()) + 2, -1))
--   Filter absence record with an enddate below the lower bound (perhaps a bit superfluous with the inner join)
WHERE  YEAR(ISNULL(Absence.AbsenceEndDate, GETDATE())) >= YEAR(GETDATE()) - 2

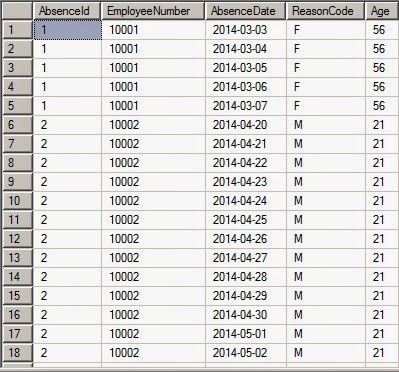

Result of query that can be used in a fact package

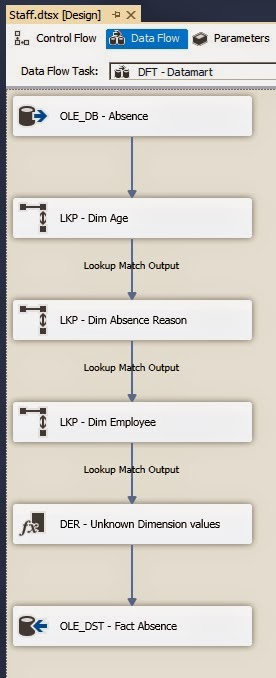

fact absence

A For Loop Container for retrying a task

Variables for the FOR LOOP

The FOR LOOP expressions

Pause after failure

Read-only variables

// C# Code
using System;
using System.Data;
using Microsoft.SqlServer.Dts.Runtime;
using System.Windows.Forms;

namespace ST_1c11fe9f84ce4662bdc37ece5316e04d
{
    [Microsoft.SqlServer.Dts.Tasks.ScriptTask.SSISScriptTaskEntryPointAttribute]
    public partial class ScriptMain : Microsoft.SqlServer.Dts.Tasks.ScriptTask.VSTARTScriptObjectModelBase
    {

        public void Main()
        {
            if (Dts.Variables["RetryCounter"].Value.ToString() != Dts.Variables["RetryMax"].Value.ToString())
            {
                // Fire warning message that the previous task failed
                Dts.Events.FireWarning(0, "Wait", "Attempt " + Dts.Variables["RetryCounter"].Value.ToString() + " of " + Dts.Variables["RetryMax"].Value.ToString() + " failed. Retry in " + Dts.Variables["RetryPause"].Value.ToString() + " seconds.", string.Empty, 0);

                // Wait x seconds
                System.Threading.Thread.Sleep(Convert.ToInt32(Dts.Variables["RetryPause"].Value) * 1000);

                // Succeed Script Task and continue loop
                Dts.TaskResult = (int)ScriptResults.Success;
            }
            else
            {
                // Max retry has been reached. Log, fail and quit
                Dts.Events.FireError(0, "Wait", "Attempt " + Dts.Variables["RetryCounter"].Value.ToString() + " of " + Dts.Variables["RetryMax"].Value.ToString() + " failed. No more retries.", string.Empty, 0);

                // Fail Script Task and quit loop/package
                Dts.TaskResult = (int)ScriptResults.Failure;
            }
        }

        #region ScriptResults declaration
        ///

        /// This enum provides a convenient shorthand within the scope of this class for setting the
        /// result of the script.
        ///
        /// This code was generated automatically.
        ///

        enum ScriptResults
        {
            Success = Microsoft.SqlServer.Dts.Runtime.DTSExecResult.Success,
            Failure = Microsoft.SqlServer.Dts.Runtime.DTSExecResult.Failure
        };
        #endregion
    }
}

read-only and read-write variables

// C# Code
using System;
using System.Data;
using Microsoft.SqlServer.Dts.Runtime;
using System.Windows.Forms;

namespace ST_a72ebc0827b64c0f8a1083951014129c
{
    [Microsoft.SqlServer.Dts.Tasks.ScriptTask.SSISScriptTaskEntryPointAttribute]
    public partial class ScriptMain : Microsoft.SqlServer.Dts.Tasks.ScriptTask.VSTARTScriptObjectModelBase
    {
        public void Main()
        {
            // Fire information message that the previous task succeeded
            bool FireAgain = true;
            Dts.Events.FireInformation(0, "Succeeded", "Attempt " + Dts.Variables["User::RetryCounter"].Value.ToString() + " of " + Dts.Variables["User::RetryMax"].Value.ToString() + " succeeded. Quiting loop", string.Empty, 0, ref FireAgain);

            // Fill boolean variable with true so that the FOR LOOP EvalExpression will evaluate false and quit
            Dts.Variables["User::QuitForLoop"].Value = true;

            Dts.TaskResult = (int)ScriptResults.Success;
        }

        #region ScriptResults declaration
        ///

        /// This enum provides a convenient shorthand within the scope of this class for setting the
        /// result of the script.
        ///
        /// This code was generated automatically.
        ///

        enum ScriptResults
        {
            Success = Microsoft.SqlServer.Dts.Runtime.DTSExecResult.Success,
            Failure = Microsoft.SqlServer.Dts.Runtime.DTSExecResult.Failure
        };
        #endregion
    }
}

Empty OnError event handler with propagate set to false

Show system variables for SSIS 2008

Third attempt was successful

All five attempts failed

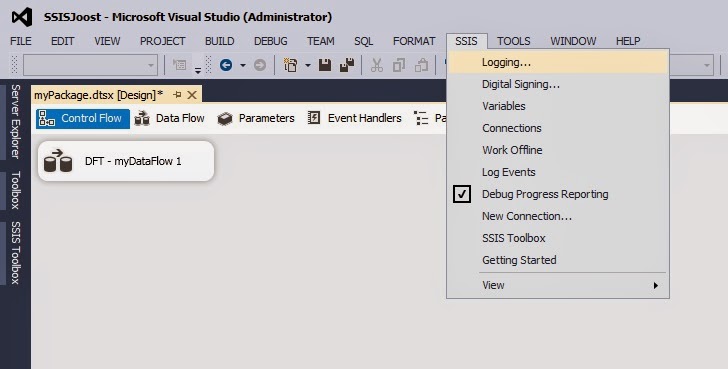

SSIS Menu - Logging...

SQL Server logging

Enable logging for the Data Flow Task

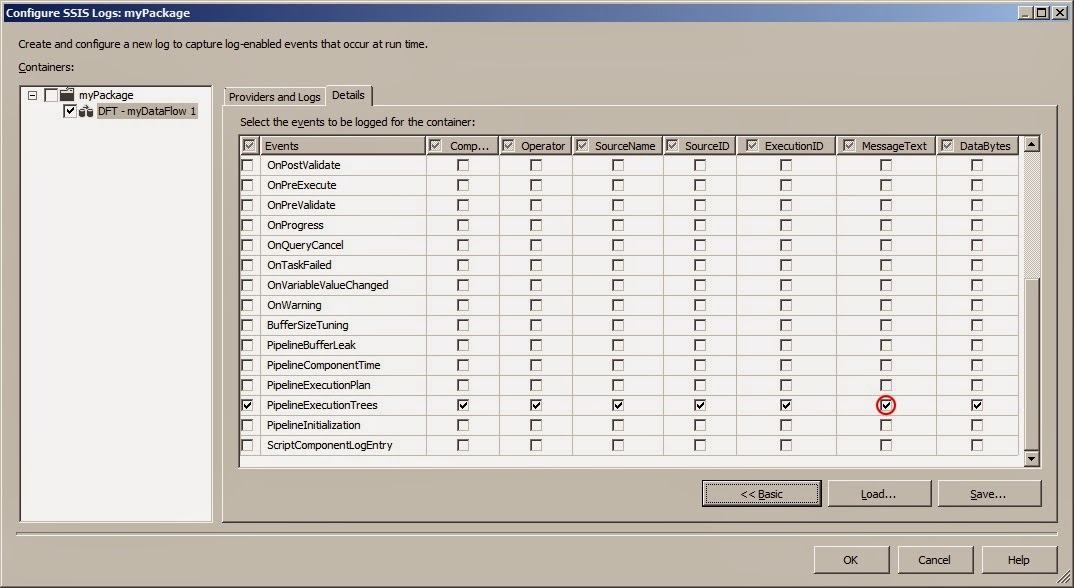

Logging Details

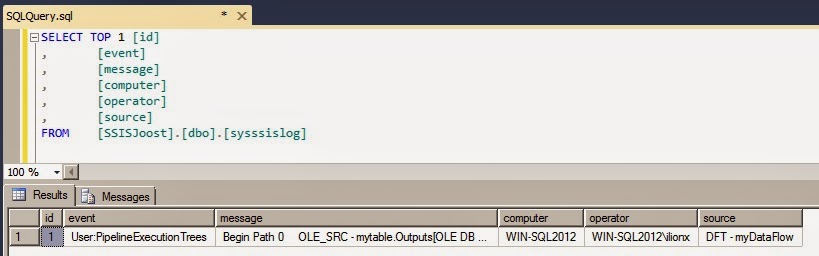

Check MessageText

SQL Server Logging. Check message column.

Plain Data Flow: 1 path - No blocking

Data Flow with Sort: 2 paths - Sort is blocking

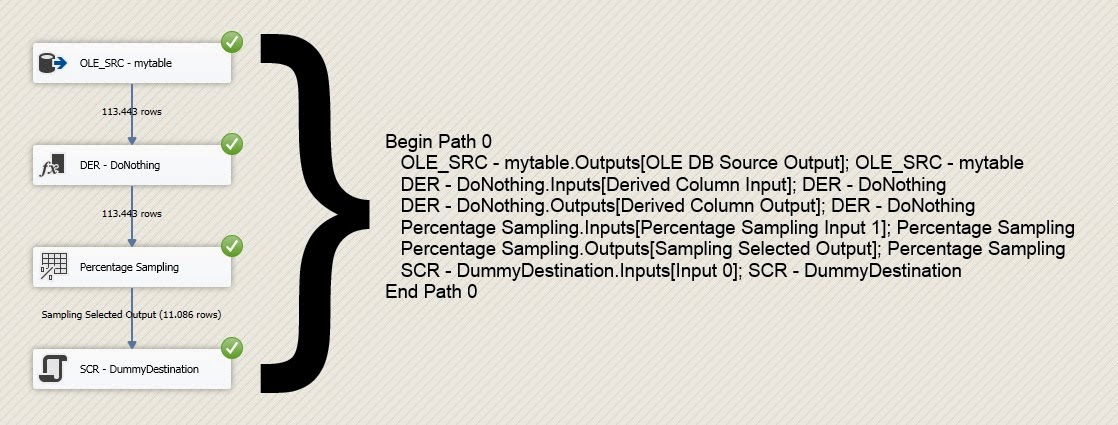

Data Flow with Percentage Sampling: 1 path - No blocking

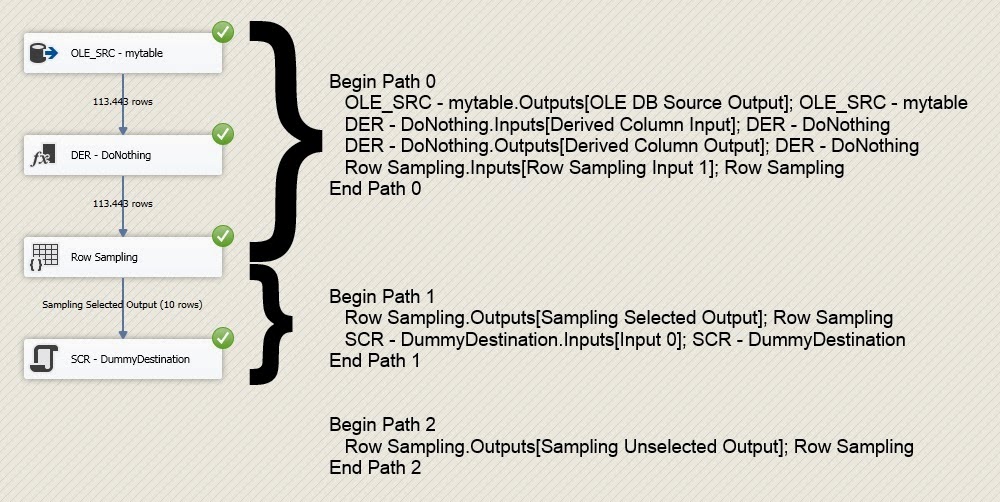

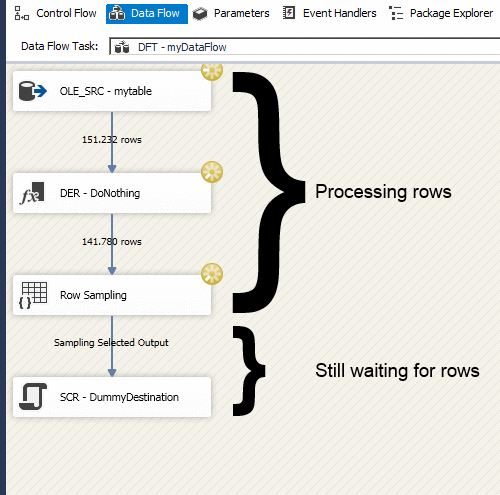

Data Flow with Row Sampling: 3 paths - Row Sampling is blocking

Row Sampling is Fully Blocking

@ssisjoost yes, that is correct
— Matt Masson (@mattmasson) June 7, 2014

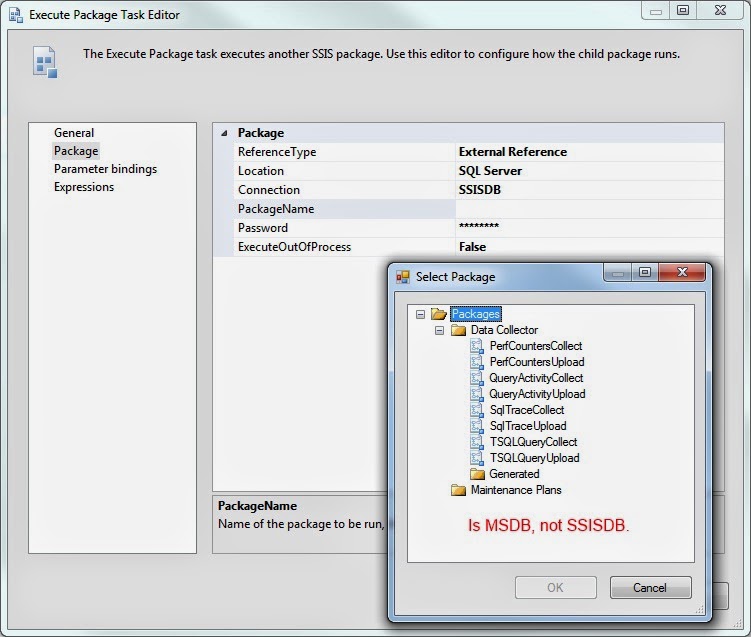

Pointing to MSDB instead of SSISDB

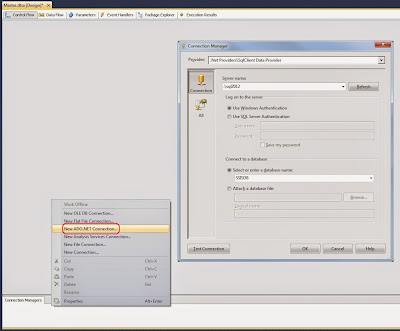

ADO.Net connection (don't use OLEDB)

String variable filled with package path

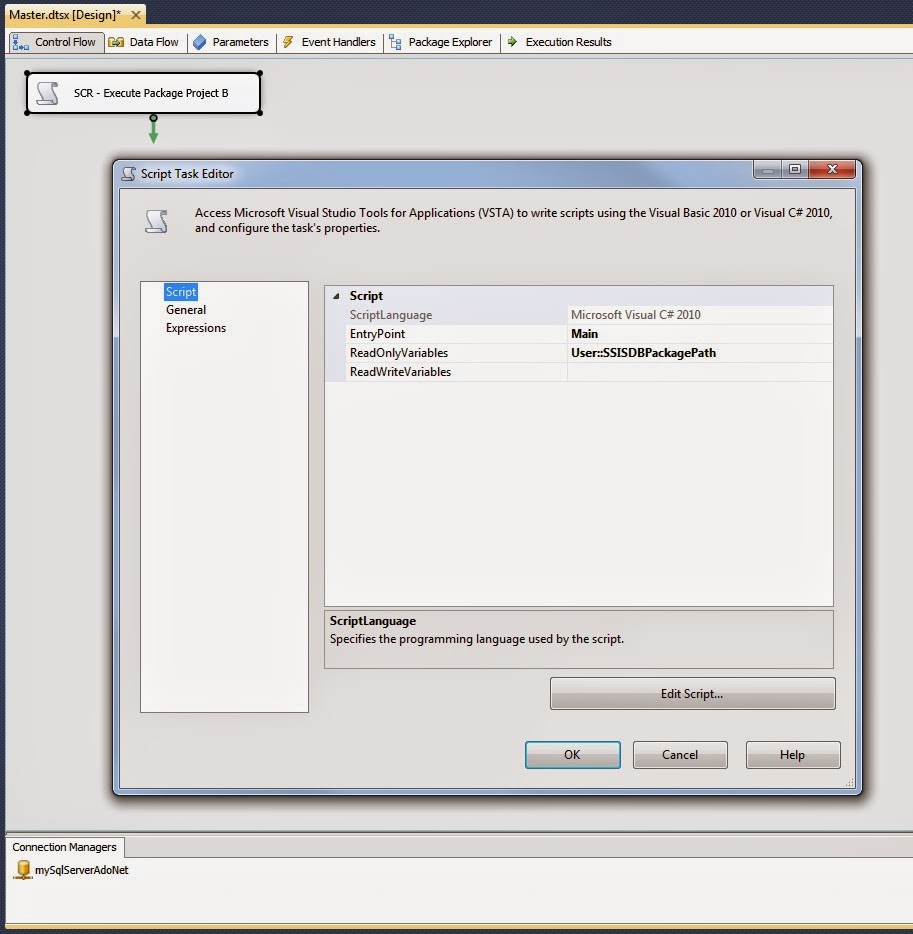

Script Task - ReadOnlyVariables

Add references

// C# Code
#region Namespaces
using System;
using System.Data;
using Microsoft.SqlServer.Dts.Runtime;
using System.Windows.Forms;
// Added:
using System.Data.SqlClient;
using Microsoft.SqlServer.Management.IntegrationServices;
using System.Collections.ObjectModel;
#endregion

namespace ST_e71fdb73f68c4a3f9595ea5d37464a62
{
    /// <summary>
    /// ScriptMain is the entry point class of the script.  Do not change the name, attributes,
    /// or parent of this class.
    /// </summary>
 [Microsoft.SqlServer.Dts.Tasks.ScriptTask.SSISScriptTaskEntryPointAttribute]
 public partial class ScriptMain : Microsoft.SqlServer.Dts.Tasks.ScriptTask.VSTARTScriptObjectModelBase
 {
        public void Main()
  {
            // Boolean variable for firing event messages
            bool fireAgain = true;

            // Execution of child package starting
            Dts.Events.FireInformation(0, "Child Package - " + Dts.Variables["User::SSISDBPackagePath"].Value.ToString(), "Starting", string.Empty, 0, ref fireAgain);

            try
            {
                // Connection to the database server where the packages are located
                // SqlConnection ssisConnection = new SqlConnection(@"Data Source=.\SQL2012;Initial Catalog=SSISDB;Integrated Security=SSPI;");
                SqlConnection ssisConnection = new SqlConnection(Dts.Connections["mySqlServerAdoNet"].ConnectionString);

                // SSIS server object with connection
                IntegrationServices ssisServer = new IntegrationServices(ssisConnection);

                // Split the variable containing the package path in smaller
                // parts: /SSISDB/Folder/Project/Package.Dtsx
                string[] SSISDBPackagePath = Dts.Variables["User::SSISDBPackagePath"].Value.ToString().Split('/');

                // The reference to the package which you want to execute
                // Microsoft.SqlServer.Management.IntegrationServices.PackageInfo ssisPackage = ssisServer.Catalogs["SSISDB"].Folders["folder"].Projects["project"].Packages["package.dtsx"];
                Microsoft.SqlServer.Management.IntegrationServices.PackageInfo ssisPackage = ssisServer.Catalogs[SSISDBPackagePath[1]].Folders[SSISDBPackagePath[2]].Projects[SSISDBPackagePath[3]].Packages[SSISDBPackagePath[4]];

                // Add execution parameter to override the default asynchronized execution. If you leave this out the package is executed asynchronized
                Collection<Microsoft.SqlServer.Management.IntegrationServices.PackageInfo.ExecutionValueParameterSet> executionParameter = new Collection<Microsoft.SqlServer.Management.IntegrationServices.PackageInfo.ExecutionValueParameterSet>();
                executionParameter.Add(new Microsoft.SqlServer.Management.IntegrationServices.PackageInfo.ExecutionValueParameterSet { ObjectType = 50, ParameterName = "SYNCHRONIZED", ParameterValue = 1 });

                // For adding more parameters go to my WIKI post on MSDN:
                // http://social.technet.microsoft.com/wiki/contents/articles/21978.execute-ssis-2012-package-with-parameters-via-net.aspx

                // Get the identifier of the execution to get the log
                long executionIdentifier = ssisPackage.Execute(false, null, executionParameter);

                // If you want to catch the events from the package you are executing then you can add this
                // foreach loop. It reads the events and fires them as events. You can remove this loop if
                // you're not interested in them.

                // Loop through the log and fire events
                foreach (OperationMessage message in ssisServer.Catalogs["SSISDB"].Executions[executionIdentifier].Messages)
                {
                    // Translate Message Source Type code and Message Type code to description. See
                    // MSDN for the complete list http://msdn.microsoft.com/en-us/library/ff877994.aspx

                    string messageSourceType = "";
                    switch (message.MessageSourceType)
                    {
                        case 10:
                            messageSourceType = "Entry APIs, such as T-SQL and CLR Stored procedures";
                            break;
                        case 20:
                            messageSourceType = "External process used to run package (ISServerExec.exe)";
                            break;
                        case 30:
                            messageSourceType = "Package-level objects";
                            break;
                        case 40:
                            messageSourceType = "Control Flow tasks";
                            break;
                        case 50:
                            messageSourceType = "Control Flow containers";
                            break;
                        case 60:
                            messageSourceType = "Data Flow task";
                            break;
                    }

                    // Translate Message Type (=event)
                    string messageType = "";
                    switch (message.MessageType)
                    {
                        case -1:
                            messageType = "Unknown";
                            break;
                        case 120:
                            messageType = "Error";
                            break;
                        case 110:
                            messageType = "Warning";
                            break;
                        case 70:
                            messageType = "Information";
                            break;
                        case 10:
                            messageType = "Pre-validate";
                            break;
                        case 20:
                            messageType = "Post-validate";
                            break;
                        case 30:
                            messageType = "Pre-execute";
                            break;
                        case 40:
                            messageType = "Post-execute";
                            break;
                        case 60:
                            messageType = "Progress";
                            break;
                        case 50:
                            messageType = "StatusChange";
                            break;
                        case 100:
                            messageType = "QueryCancel";
                            break;
                        case 130:
                            messageType = "TaskFailed";
                            break;
                        case 90:
                            messageType = "Diagnostic";
                            break;
                        case 200:
                            messageType = "Custom";
                            break;
                        case 140:
                            messageType = "DiagnosticEx";
                            break;
                        case 400:
                            messageType = "NonDiagnostic";
                            break;
                        case 80:
                            messageType = "VariableValueChanged";
                            break;
                    }

                    // Fire event depending on the message type (event) in the child package. Since there are event types that you
                    // can't fire from a Script Task, we need to 'translate' them. For example a TaskFailed event is fired as an
                    // error event. More info see: http://microsoft-ssis.blogspot.com/2011/02/script-task-and-component-logging.html
                    switch (message.MessageType)
                    {
                        case -1:    // Unknown
                        case 120:   // Error
                        case 130:   // TaskFailed
                            Dts.Events.FireError(Convert.ToInt32(message.MessageType), "Child Package - " + messageSourceType, messageType + " : " + message.Message, string.Empty, 0);
                            break;
                        case 110:   // Warning
                            Dts.Events.FireWarning(Convert.ToInt32(message.MessageType), "Child Package - " + messageSourceType, messageType + " : " + message.Message, string.Empty, 0);
                            break;
                        default:
                            Dts.Events.FireInformation(Convert.ToInt32(message.MessageType), "Child Package - " + messageSourceType, messageType + " : " + message.Message, string.Empty, 0, ref fireAgain);
                            break;
                    }
                } // END FOREACH LOOP

                if (ssisServer.Catalogs["SSISDB"].Executions[executionIdentifier].Status == Operation.ServerOperationStatus.Success)
                {
                    // Execution of child package succeeded
                    Dts.Events.FireInformation(0, "Child Package - " + Dts.Variables["User::SSISDBPackagePath"].Value.ToString(), "Succeeded", string.Empty, 0, ref fireAgain);
                    Dts.TaskResult = (int)ScriptResults.Success;
                }
                else
                {
                    // Execution of child package failed
                    Dts.Events.FireError(0, "Child Package - " + Dts.Variables["User::SSISDBPackagePath"].Value.ToString(), "There may be error messages posted before this with more information about the failure.", string.Empty, 0);
                    Dts.TaskResult = (int)ScriptResults.Failure;
                }

            }
            catch (Exception ex)
            {
                // Execution of child package failed (server timeout, can't find package, etc.)
                Dts.Events.FireError(0, "Child Package - " + Dts.Variables["User::SSISDBPackagePath"].Value.ToString(), "Failed: " + ex.Message, string.Empty, 0);
                Dts.TaskResult = (int)ScriptResults.Failure;
            }
  }

        #region ScriptResults declaration
        /// <summary>
        /// This enum provides a convenient shorthand within the scope of this class for setting the
        /// result of the script.
        ///
        /// This code was generated automatically.
        /// </summary>
        enum ScriptResults
        {
            Success = Microsoft.SqlServer.Dts.Runtime.DTSExecResult.Success,
            Failure = Microsoft.SqlServer.Dts.Runtime.DTSExecResult.Failure
        };
        #endregion

 }
}

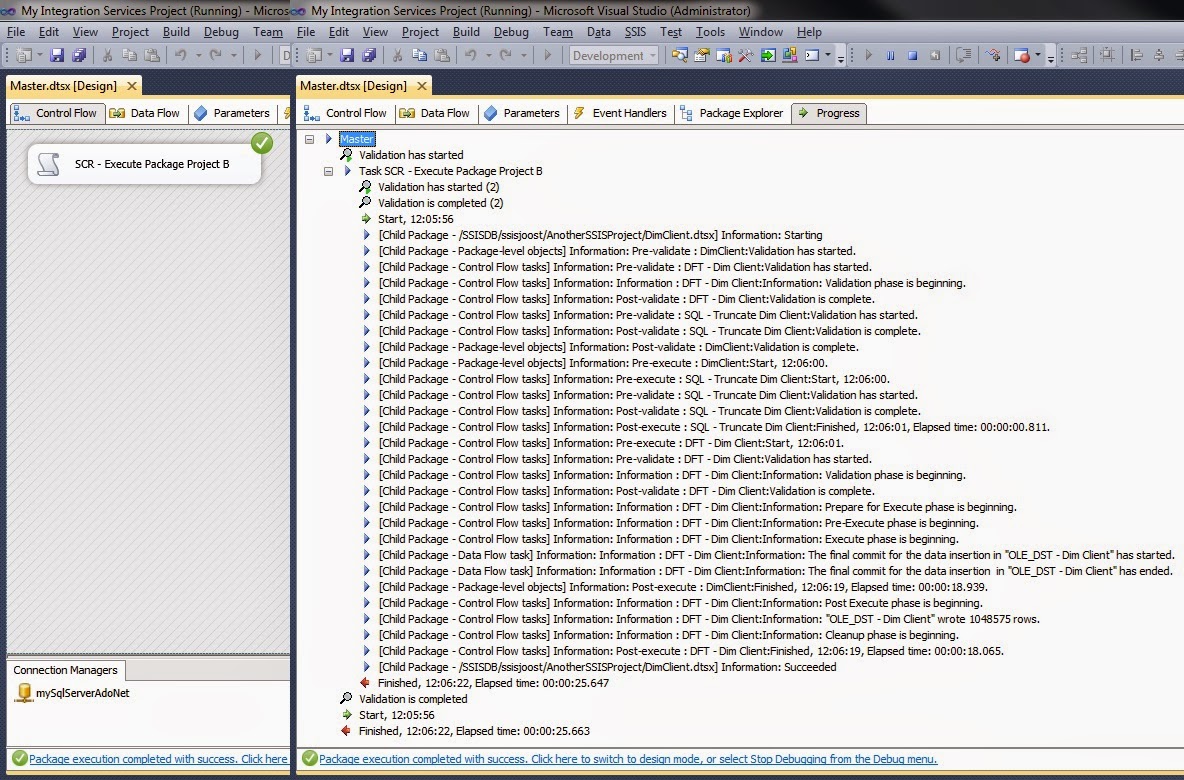

The result in Visual Studio

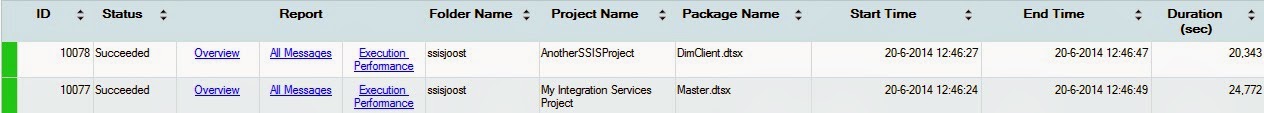

Two executions

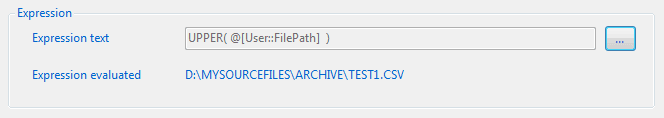

Custom Task with built-in Expression Builder

Two extra usings

Extra controls in the editor

// C# code
private void btnExpression_Click(object sender, EventArgs e)
{
 try
 {
  // Create an expression builder popup and make sure the expressions can be evaluated as a string:
  // Or change it if you want boolean to System.Boolean, etc. Last property is the textbox containing
  // the expression that you want to edit.
  using (var expressionBuilder = ExpressionBuilder.Instantiate(_taskHost.Variables,
                 _taskHost.VariableDispenser,
                 Type.GetType("System.String"),
                 txtExpression.Text))
  {
   // Open the window / dialog with expression builder
   if (expressionBuilder.ShowDialog() == DialogResult.OK)
   {
    // If pressed OK then get the created expression
    // and put it in a textbox.
    txtExpression.Text = expressionBuilder.Expression;
    lblExpressionEvaluated.Text = "";

    // Create object to evaluate the expression
    Wrapper.ExpressionEvaluator evalutor = new Wrapper.ExpressionEvaluator();

    // Add the expression
    evalutor.Expression = txtExpression.Text;

    // Object for storing the evaluated expression
    object result = null;

    try
    {
     // Evalute the expression and store it in the result object
     evalutor.Evaluate(DtsConvert.GetExtendedInterface(_taskHost.VariableDispenser), out result, false);
    }
    catch (Exception ex)
    {
     // Store error message in label
     // Perhaps a little useless in this example because the expression builder window
     // already validated the expression. But you could also make the textbox readable
     // and change the expression there (without opening the expression builder window)
     lblExpressionEvaluated.Text = ex.Message;
    }

    // If the Expression contains some error, the "result" will be <null>.
    if (result != null)
    {
     // Add evaluated expression to label
     lblExpressionEvaluated.Text = result.ToString();
    }
   }
  }
 }
 catch (Exception ex)
 {
  MessageBox.Show(ex.Message);
 }
}
